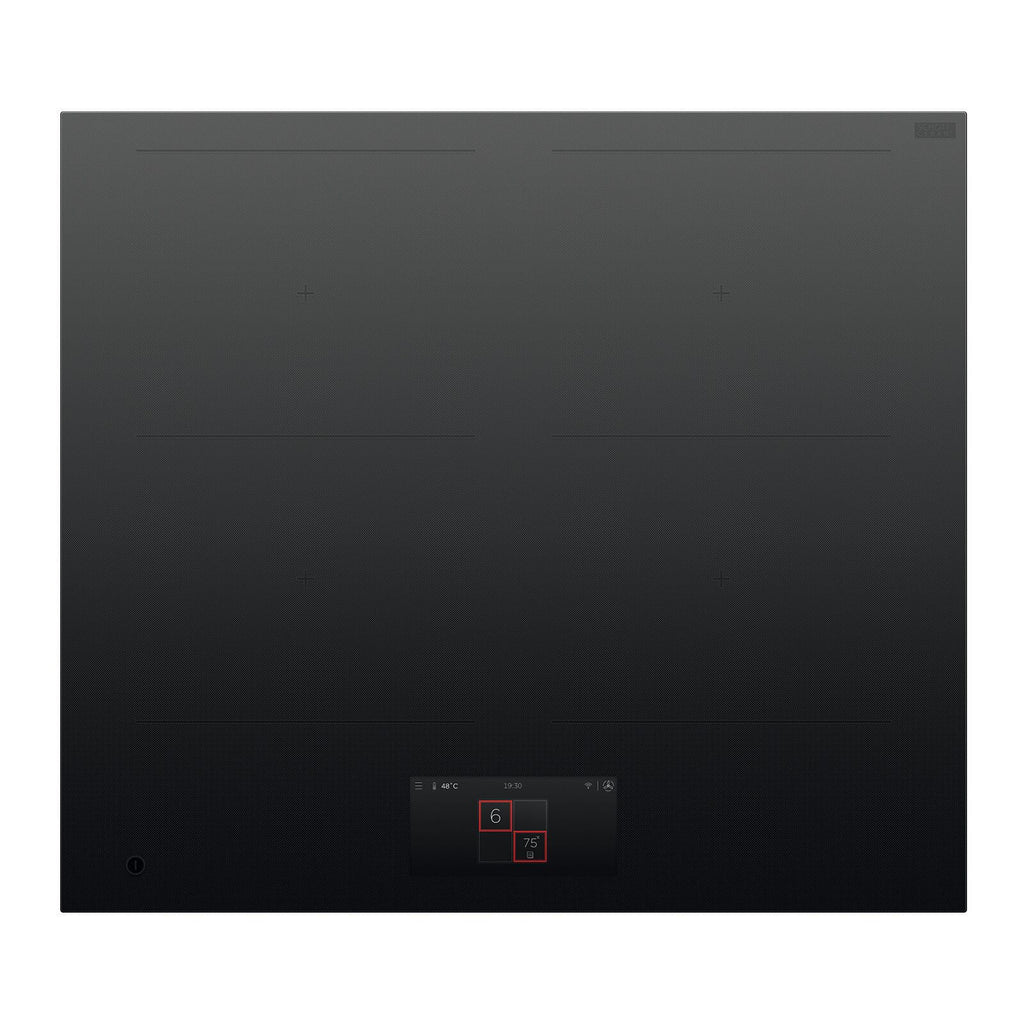

Fisher & Paykel CI604DTTB1 Inductiekookplaat Zwart
De Fisher & Paykel CI604DTTB1 is een stijlvolle zwarte inductiekookplaat van 60 cm met intuïtieve touchbediening, snelle verhitting en nauwkeurige temperatuurregeling voor moeiteloos en efficiënt koken in elke moderne keuken.
€3.799,00
Afhalen is op dit moment niet beschikbaar
Betalen met:
Beschrijving
Functies & specificaties
53,0 × 60,0 × 6,2 cm (L×W×H)
14,0 kg
Functies
App‑naam
SmartHQ™ app
Wi‑Fi
N.v.t.
Compatibel besturingssysteem
N.v.t.
Bluetooth
N.v.t.
Aantal kookniveaus
N.v.t.
Aantal kook sensoren
N.v.t.
Brug
SmartZone
Automatische brug
N.v.t.
Automatisch opnieuw verbinden
N.v.t.
Automatische timer
N.v.t.
Timer
Minutentimer
Booster
PowerBoost
Dubbele booster
N.v.t.
Chefmodus
N.v.t.
Grillfunctie
N.v.t.
Intelligente inductie
Inductiekooktechnologie
Kookfunctie
N.v.t.
Automatisch koken
N.v.t.
Pannendetectie
Pannendetectiesysteem
Stop & Go
N.v.t.
Witt Connect
N.v.t.
Aantal kookzones
4
Aantal uitbreidbare zones
2 SmartZones
Automatisch uitschakelen
Veiligheidstimer
Aantal automatische programma’s
N.v.t.
Kinderslot
Toetsenblokkering
Veiligheidsstop (11 stuks)
Restwarmte-indicatoren
Ontwerp en plaatsing
Min. installatiedistance (mm)
N.v.t.
Zone
achter‑rechts (mm): N.v.t.
Zone
achter‑rechts (watt): 2100 W nominaal (Boost tot 3700 W)
Zone
midden‑achter (mm): N.v.t.
Zone
midden‑achter (watt): N.v.t.
Zone
achter‑links (mm): N.v.t.
Zone
achter‑links (watt): 2100 W nominaal (Boost tot 3700 W)
Zone
midden‑voor (mm): N.v.t.
Zone
midden‑voor (watt): N.v.t.
Zone
voor‑rechts (mm): N.v.t.
Zone
voor‑rechts (watt): 2100 W nominaal (Boost tot 3700 W)
Zone
voor‑links (mm): N.v.t.
Zone
voor‑links (watt): 2100 W nominaal (Boost tot 3700 W)
Service van onderaf mogelijk
N.v.t.
Inbouwmaat (HxBxD) mm
Hoogte 62 mm; Breedte 600 mm; Diepte 530 mm
Bedieningspaneel
Intuïtief touchscreen display
Display
Meertalige display
Frame
N.v.t.
Capaciteit en verbruik
Aansluiting
Klemmenblok, 1 N of 2 N
Stekker aan kabel (type)
N.v.t.
Kabellengte (cm)
N.v.t.
Kabel inbegrepen
Draadloze temperatuursensor inbegrepen (accessoire)
Geluidsniveau (dB)
N.v.t.
Nominale frequentie 50/60 Hz
50 Hz / 60 Hz
Ampère (A)
32 A (vereiste aansluiting)
Vermogen (W)
Gecombineerd zonevermogen 2100 W per stuk (Boost tot 3700 W)
Spanning (V)
220‑240 V
Energieverbruik per jaar (kWh)
N.v.t.
Energieklasse
Koppelbaar
Technicus vereist
Ja (installatie door een erkend installateur vereist)
Productgegevens & gebruikershandleiding
Product data
Brand:
Fisher & Paykel
SKU: 15310579
EAN: 9415112830024
Inhoud van de doos
Fisher & Paykel CI604DTTB1 Inductiekookplaat Zwart
€3.799,00
Fisher & Paykel Modular Cooktop System
Build your own cooktop
Start with a touchscreen induction hob. Add extra induction zones, a teppanyaki and downdraft ventilation, side by side in one line. Or simply use the touchscreen hob on its own.
Plan your set
Every set has one touchscreen hob. Add up to two extra hobs, induction or teppanyaki, and choose how to remove the steam.
1 · The primary hob
A touchscreen hob in 39, 60, 76 or 90 cm
It controls the whole set, or works as a hob on its own.
2 · The modules
Extra induction, teppanyaki and downdraft
They have no controls of their own and are run from the primary hob.
90 cm widePrimary hobBlack glass
CI905DTTB1
The largest touchscreen hob: two SmartZones and a centre zone that reaches 5500 W with Boost, for a wok or a large pot. Use it on its own or as the heart of a modular set.
- RolePrimary · controls the set or works alone
- Size (W × D × H)90 × 53 × 6.2 cm
- Zones5 · 2 SmartZones + centre zone
- Power per zone2100 W, Boost 3700 W · centre 2600 W, Boost 5500 W
- Cut-out, on its own86.2 × 50.7 cm raised · 86.2 × 50.9 cm flush
- Connection48 A · terminal block 1N or 3N
- GlassBlack
- IncludedWireless Temperature Sensor
- Weight20 kg
90 cm widePrimary hobGrey glass
CI905DTTG1
The largest touchscreen hob: two SmartZones and a centre zone that reaches 5500 W with Boost, for a wok or a large pot. Use it on its own or as the heart of a modular set.
- RolePrimary · controls the set or works alone
- Size (W × D × H)90 × 53 × 6.2 cm
- Zones5 · 2 SmartZones + centre zone
- Power per zone2100 W, Boost 3700 W · centre 2600 W, Boost 5500 W
- Cut-out, on its own86.2 × 50.7 cm raised · 86.2 × 50.9 cm flush
- Connection48 A · terminal block 1N or 3N
- GlassGrey
- IncludedWireless Temperature Sensor
- Weight20 kg
76 cm widePrimary hobBlack glass
CI764DTTB1
Four zones in 76 cm: a SmartZone pair on the right, a large round zone at the front left and a small round zone at the back. Use it on its own or as the heart of a modular set.
- RolePrimary · controls the set or works alone
- Size (W × D × H)76 × 53 × 6.2 cm
- Zones4 · 1 SmartZone + 2 round zones
- Power per zoneLeft front 2600 W · centre rear 1400 W · right 2 × 2100 W
- Cut-out, on its own72.2 × 50.7 cm raised · 72.2 × 50.9 cm flush
- Connection32 A · terminal block 1N or 2N
- GlassBlack
- IncludedWireless Temperature Sensor
- Weight16 kg
76 cm widePrimary hobGrey glass
CI764DTTG1
Four zones in 76 cm: a SmartZone pair on the right, a large round zone at the front left and a small round zone at the back. Use it on its own or as the heart of a modular set.
- RolePrimary · controls the set or works alone
- Size (W × D × H)76 × 53 × 6.2 cm
- Zones4 · 1 SmartZone + 2 round zones
- Power per zoneLeft front 2600 W · centre rear 1400 W · right 2 × 2100 W
- Cut-out, on its own72.2 × 50.7 cm raised · 72.2 × 50.9 cm flush
- Connection32 A · terminal block 1N or 2N
- GlassGrey
- IncludedWireless Temperature Sensor
- Weight16 kg
60 cm widePrimary hobBlack glass
CI604DTTB1
Four zones that link in pairs into two SmartZones, in a standard 60 cm width. Use it on its own or as the heart of a modular set.
- RolePrimary · controls the set or works alone
- Size (W × D × H)60 × 53 × 6.2 cm
- Zones4 · 2 SmartZones
- Power per zone2100 W, Boost 3700 W
- Cut-out, on its own56.2 × 50.7 cm raised · 56.2 × 50.9 cm flush
- Connection32 A · terminal block 1N or 2N
- GlassBlack
- IncludedWireless Temperature Sensor
- Weight14 kg
60 cm widePrimary hobGrey glass
CI604DTTG1
Four zones that link in pairs into two SmartZones, in a standard 60 cm width. Use it on its own or as the heart of a modular set.
- RolePrimary · controls the set or works alone
- Size (W × D × H)60 × 53 × 6.2 cm
- Zones4 · 2 SmartZones
- Power per zone2100 W, Boost 3700 W
- Cut-out, on its own56.2 × 50.7 cm raised · 56.2 × 50.9 cm flush
- Connection32 A · terminal block 1N or 2N
- GlassGrey
- IncludedWireless Temperature Sensor
- Weight14 kg
39 cm widePrimary hobBlack glass
CI392DTTB1
The compact touchscreen hob: two zones that link into one SmartZone. Use it on its own as a small hob, or as the primary hob of a modular set.
- RolePrimary · controls the set or works alone
- Size (W × D × H)38.5 × 53 × 6.2 cm
- Zones2 · 1 SmartZone
- Power per zone2100 W, Boost 3700 W
- Cut-out, on its own34.7 × 50.7 cm raised · 34.7 × 50.9 cm flush
- Connection16 A · 1.7 m cable supplied
- GlassBlack
- IncludedWireless Temperature Sensor
- Weight8 kg
39 cm wideModuleBlack glass
CI392DB1
Two more induction zones next to your primary hob. Link them into one SmartZone for a griddle or a large pan, and run them from the primary hob's touchscreen.
- RoleExtra induction hob · needs a primary hob
- Size (W × D × H)38.5 × 53 × 6.2 cm
- Zones2 · 1 SmartZone
- Power per zone2100 W, Boost 3700 W
- ControlsOn the primary hob's touchscreen
- Connection16 A · 1.7 m cable supplied
- GlassBlack
- Weight8 kg
This module has no controls of its own. It needs one of the touchscreen hobs above (CI905DTT, CI764DTT, CI604DTT or CI392DTTB1) in the same set.
30 cm wideModuleBlack glass
CI302DB1
The slimmest extra hob: two induction zones in 30 cm that link into one SmartZone. You run it from the primary hob's touchscreen.
- RoleExtra induction hob · needs a primary hob
- Size (W × D × H)30 × 53 × 6.2 cm
- Zones2 · 1 SmartZone
- Power per zone2100 W, Boost 3700 W
- ControlsOn the primary hob's touchscreen
- Connection16 A · 1.7 m cable supplied
- GlassBlack
- Weight7 kg
This module has no controls of its own. It needs one of the touchscreen hobs above (CI905DTT, CI764DTT, CI604DTT or CI392DTTB1) in the same set.
30 cm wideModuleGrey glass
CI302DG1
The slimmest extra hob: two induction zones in 30 cm that link into one SmartZone. You run it from the primary hob's touchscreen.
- RoleExtra induction hob · needs a primary hob
- Size (W × D × H)30 × 53 × 6.2 cm
- Zones2 · 1 SmartZone
- Power per zone2100 W, Boost 3700 W
- ControlsOn the primary hob's touchscreen
- Connection16 A · 1.7 m cable supplied
- GlassGrey
- Weight7 kg
This module has no controls of its own. It needs one of the touchscreen hobs above (CI905DTT, CI764DTT, CI604DTT or CI392DTTB1) in the same set.
39 cm wideModuleStainless steel
CIT392DX1
A teppanyaki plate you cook on directly, without pots or pans. Set it anywhere from 80 to 220 °C from the primary hob's touchscreen, and use the whole plate or just one half.
- RoleTeppanyaki · needs a primary hob
- Size (W × D × H)38.5 × 53 × 7.4 cm
- PlateStainless steel · 2 zones of 1400 W
- Temperature80–220 °C
- ControlsOn the primary hob's touchscreen
- Connection12 A · 1.7 m cable supplied
- Weight15 kg
This module has no controls of its own. It needs one of the touchscreen hobs above (CI905DTT, CI764DTT, CI604DTT or CI392DTTB1) in the same set.
13 cm wideModuleGrey glass
CD13DG1
Ventilation in the worktop instead of a hood above it. The slim module sits next to your hobs, you open its cover when you need it, and it adjusts its fan speed to the zones next to it.
- RoleDowndraft extractor · needs a primary hob
- Size (W × D)13 × 53 cm · 18.6 cm high
- Fan5 speeds + Boost
- Max. airflow519 m³/h
- Energy classB · 79 kWh a year
- Noise level59 dB at the highest normal speed · 78 dB on Boost
- Grease filterDishwasher-safe mesh filter
- ControlsOn the primary hob's touchscreen
This module has no controls of its own. It needs one of the touchscreen hobs above (CI905DTT, CI764DTT, CI604DTT or CI392DTTB1) in the same set.
Centralised touchscreen control
One screen for the whole set
The primary hob has a 6-inch touchscreen that runs every part of the set: its own zones, the extra induction hobs, the teppanyaki and the downdraft. No knobs or dials, just refined graphics on the glass.
The modules have no controls of their own, which is why every set needs exactly one primary hob.
With Link Mode, the primary hob also works with the downdraft or a compatible Fisher & Paykel hood, so the fan switches on and off by itself as you cook.

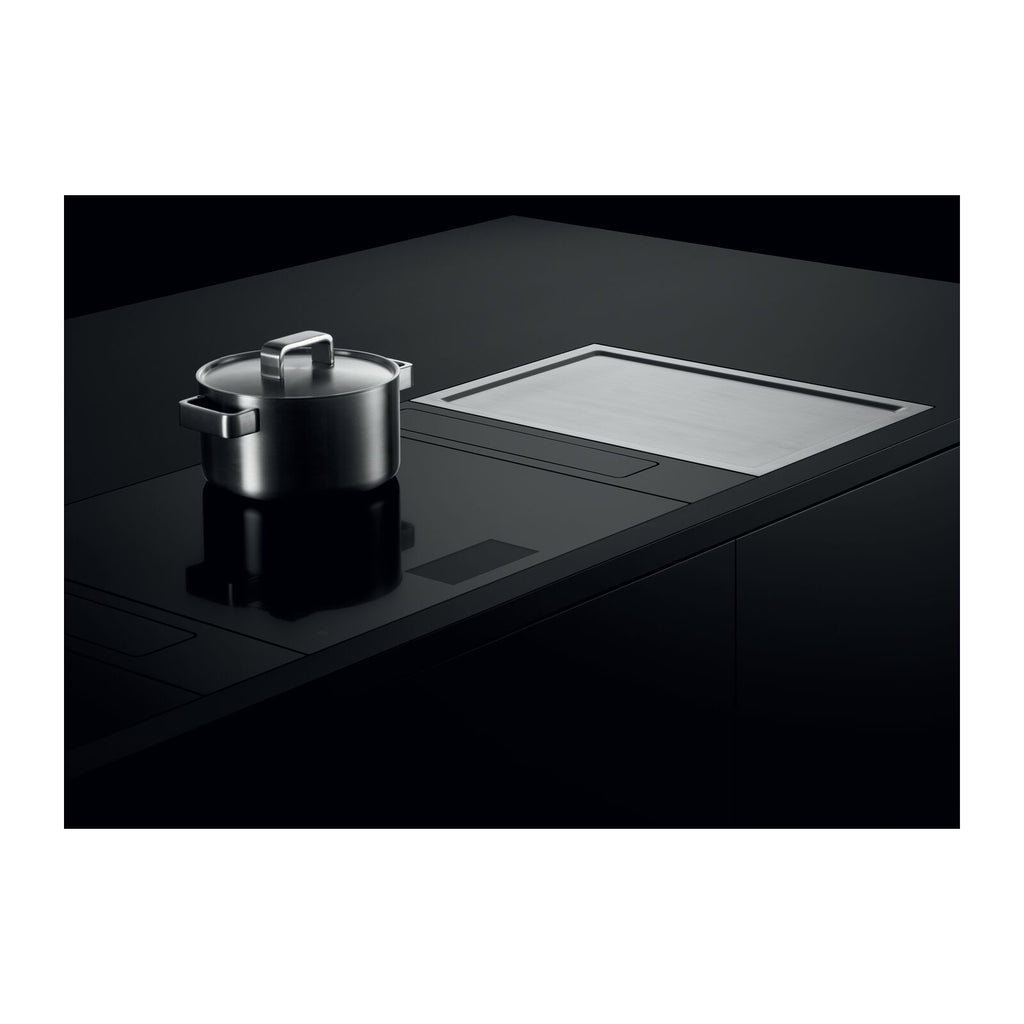

Add what you like to cook
Place the modules where they suit the way you cook.
30 or 39 cm
Two more zones
CI392DB1 (39 cm) and CI302DB1/CI302DG1 (30 cm) add two induction zones of 2100 W each, with Boost up to 3700 W.
SmartZone links the front and rear zone and controls them as one, so you have room for a griddle, a large pan or a whole fish. Every glass induction hob in the system has SmartZone.
80–220 °C
Cook right on the plate
The CIT392DX1 teppanyaki goes from a gentle 80 °C for keeping food warm, through 100–150 °C for slow cooking and 160–200 °C for pancakes, halloumi, chicken and vegetables, up to 200–220 °C for grilling.
It holds the temperature you set, even as you add cold ingredients. Use the whole plate or one half, and cook with your guests around you, without pots or pans.
5 speeds + Boost
Ventilation in the worktop
The CD13DG1 downdraft sits next to the hobs, so you don't need a hood above them. That suits kitchen islands and open-plan kitchens. When you're not using it, you can close the cover for a cleaner, more open look.
Open the cover and Link Mode sets the fan speed to match the zones next to it. Delayed Off keeps extracting for a while after you finish, then switches off by itself.
The picture shows the black version. CD13DG1 has grey glass.
Wireless Temperature Sensor
Cook by temperature
Every primary hob comes with a Wireless Temperature Sensor. Put it in a steak to follow the core temperature in real time and get the doneness you want, or let the hob tell you when the target temperature is reached.
For sous vide and poaching, the sensor works with the hob to hold the water at the right temperature, so there's no guesswork.
One sensor is included with CI905DTT, CI764DTT, CI604DTT and CI392DTTB1, not with the modules. More sensors are sold separately. Charge the sensor before use.
The details
Minimal style
Black or grey glass
Designed to match Fisher & Paykel's touchscreen ovens. CI905DTT, CI764DTT, CI604DTT and CI302D come in black or grey, CI392DTTB1 and CI392DB1 in black. The teppanyaki is stainless steel.
SmartHQ app
Keep an eye on the cooking
Connect the primary hob to Wi-Fi to see power levels, timers and sensor readings on your phone, with alerts for timers and temperatures. The hob also gets software updates this way.
Induction
Heat goes into the pan
Induction heats the cookware, not the glass, so less heat is wasted. The glass around the pan stays cool, so spills don't bake on and a quick wipe is enough.
Fitting the set
The modules are installed together in one worktop cut-out. A qualified electrician must connect them.
One cut-out
All modules sit side by side in one shared cut-out, 2 mm apart. The extra modules come with a joiner bar and a communication cable to the module next to them.
Flush or raised
Every module can be set flush with the worktop or sit on top of it. Flush fitting needs a 6.5 mm deep recess around the cut-out.
Same depth
All modules are 53 cm deep. The induction hobs are 6.2 cm high, the teppanyaki 7.4 cm and the downdraft 18.6 cm.
Room to breathe
Cooling fans draw air in at the back and blow it out at the front, so the cabinet needs a 4 mm gap at the front and an air intake at the back.
Not above appliances
Don't install the modules directly above a dishwasher, fridge, freezer, washing machine or dryer.
Power
The 60, 76 and 90 cm hobs connect to a terminal block (cable not supplied). The 39 and 30 cm hobs and the teppanyaki come with a 1.7 m cable.
Questions and answers
What is the difference between a primary hob and a module?
The primary hobs (CI905DTT, CI764DTT, CI604DTT and CI392DTTB1) have the touchscreen and can be used on their own. The modules (the extra induction hobs CI392DB1 and CI302D, the CIT392DX1 teppanyaki and the CD13DG1 downdraft) have no controls and only work together with a primary hob.
This product is a module, so you also need a primary hob.
This product is a module, so you also need a primary hob.
This product is a module, so you also need a primary hob.
This product is a module, so you also need a primary hob.
This product is a module, so you also need a primary hob.
This product is a primary hob, so it works on its own too.
How many modules can I combine?
One primary hob per set, plus up to two extra hobs (induction, teppanyaki or one of each). For ventilation, choose one or two downdrafts, or one compatible Fisher & Paykel hood above the hob.
Where should the downdraft go?
The downdraft draws steam from the cooking zones right next to it, so place it beside the zones you use most. Where a downdraft can't reach the zones well, Fisher & Paykel recommends a hood above the hob instead. The downdraft can't be used next to a gas hob.
Is the temperature sensor included?
One Wireless Temperature Sensor comes with each primary hob. The modules don't include one. You can buy more sensors separately. Charge the sensor before use, and don't put it in the dishwasher.
How do I start using the teppanyaki?
Before the first use, clean the plate with a damp cloth and a mild detergent, then heat it to 220 °C for 30 minutes. The plate bows with use as the steel expands and contracts, which is normal.
How do I clean the downdraft?
The nine-layer grease filter is easy to take out and can go in the dishwasher.
Can I follow the cooking on my phone?
Yes. Connect the primary hob to your home Wi-Fi and the SmartHQ app shows the active zones with power level, timers and sensor readings, and sends alerts when a timer ends or a temperature is reached.
What pans can I use?
Pans with a magnetic base: stainless steel, carbon steel, cast iron, enamelled steel or cast iron, and aluminium or copper pans with a magnetic base. The teppanyaki needs no pans at all.
The images are examples that show the product benefits. They may differ slightly from the actual product, and some show modules in a different colour.

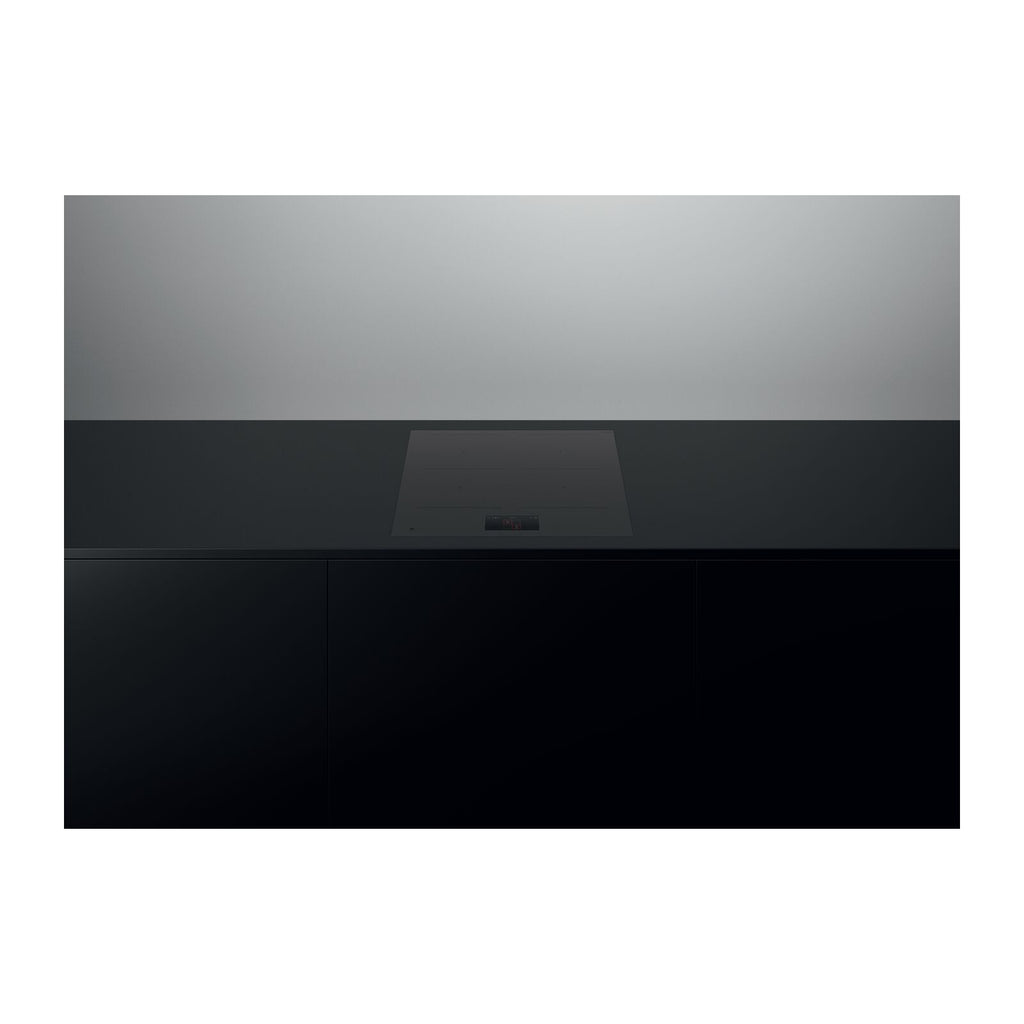

De Fisher & Paykel CI604DTTB1 inductiekookplaat heeft een strak zwart glazen oppervlak, wat een moderne, minimalistische uitstraling voor elke keuken biedt. Aanraakbediening zorgt voor nauwkeurige temperatuurregeling, terwijl het vlakke oppervlak zorgt voor gemakkelijke reiniging.
€3.799,00
Gerelateerde producten
