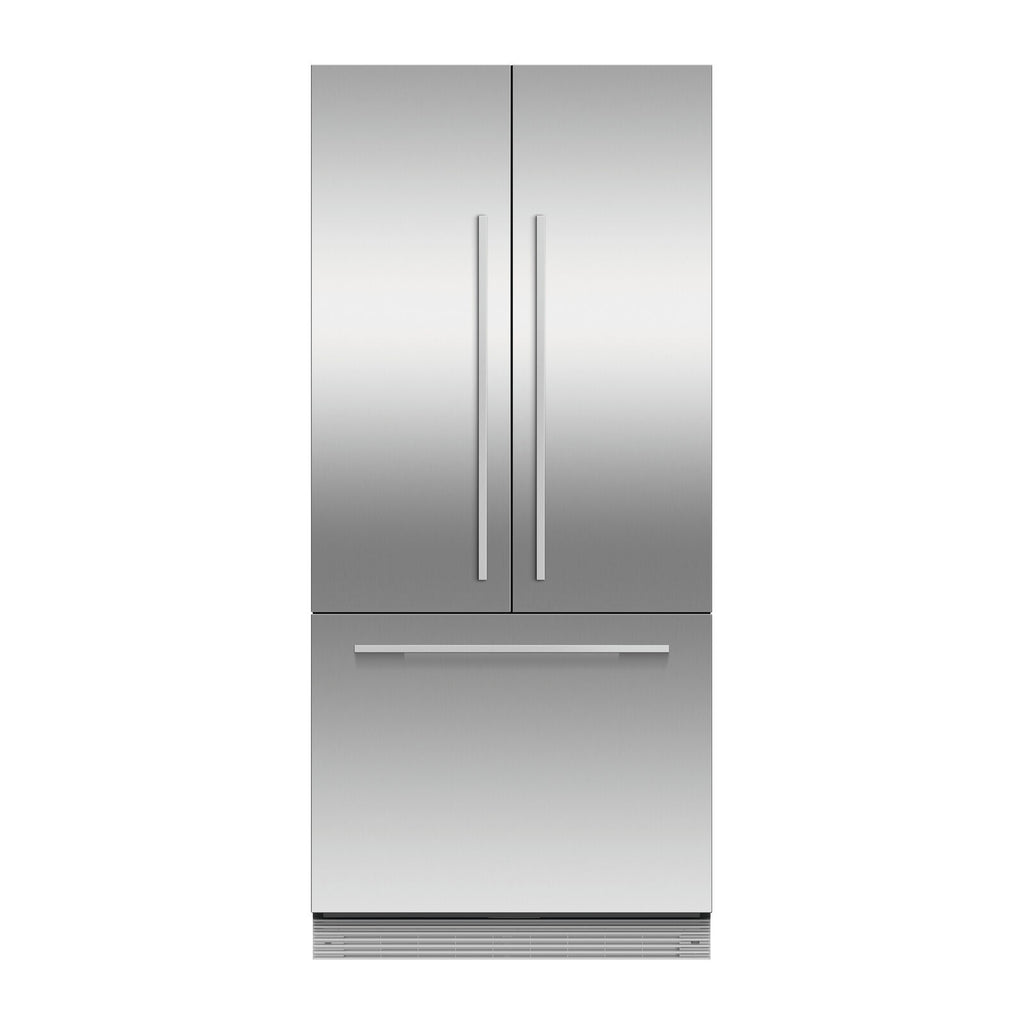

Fisher & Paykel RS80A2 Fridge/freezer Integrated
Integrated fridge-freezer with 288 litres of fridge space and a 129-litre bottom freezer. NoFrost reduces defrosting maintenance, while direct mounting to furniture fronts creates an integrated kitchen finish.
€5.699,00
Description
Functions & specifications
60,4 × 79,6 × 179,8 cm (L×W×H)
135,0 kg
Functions
NoFrost
Yes
Air circulation
Fan assisted
Wi-Fi
No
Design and placing
Freezer placed
Bottom Freezer
Door hinges
Both
Door mounted
Direct mounting on furniture front
Capacity and consumption
Energy class
E
Annual energy consumption (kWh)
284
Cooling volume (L)
288
Freezing volume net (l)
129
Noise level (dB)
42
Noise emission class dB(A)
D
Product data & user manual
Product data
Brand:
Fisher & Paykel
SKU: 09310010
EAN: 9415112266519
Content in the box
User manual
Fisher & Paykel RS80A2 Fridge/freezer Integrated
€5.699,00
Fisher & Paykel Series 7
A French door fridge that blends in
A large integrated fridge freezer with two fridge doors and a full-width freezer drawer. It fits flush into your cabinets, in 80 or 90 cm width, with or without ice and water.
Choose width and version
Both widths fit the same 180 cm niche height. The Ice & Water versions add an automatic ice maker and a water dispenser.
476
Litres in the 90 cm models: 331 l fridge and 145 l freezer. The 80 cm models hold 417 l.
4mm
Gaps to the cabinets around it, for a flush fit behind your own fronts.
180cm
Niche height for both widths, so the 80 and 90 cm models plan the same way.
90 cm wideIce & Water
RS90AU3
The 90 cm Ice & Water model: an automatic ice maker in the freezer and a slim filtered water dispenser in the door. The water dispenser requires the stainless steel panel set, sold separately. It also connects to Wi-Fi.
- Capacity476 l · 331 l fridge + 145 l freezer
- Niche (H × W × D)180–180.2 × 90–90.4 × min. 65 cm
- IceAutomatic ice maker with Ice Boost
- WaterDoor dispenser, with the stainless steel panel set
- Water connectionRequired
- Energy classE · 304 kWh a year
- Noise level42 dB · class D
90 cm wideStandard
RS90A3
The 90 cm model without water: no dispenser and an ice tray instead of an ice maker, so it needs no water connection. Fit your own kitchen panels or the stainless steel set. It also connects to Wi-Fi.
- Capacity476 l · 331 l fridge + 145 l freezer
- Niche (H × W × D)180–180.2 × 90–90.4 × min. 65 cm
- IceIce tray
- WaterNo dispenser
- Water connectionNot needed
- Energy classE · 304 kWh a year
- Noise level42 dB · class D
80 cm wideIce & Water
RS80AU2
The 80 cm Ice & Water model: an automatic ice maker in the freezer and a slim filtered water dispenser in the door, in a niche 10 cm narrower. The water dispenser requires the stainless steel panel set, sold separately.
- Capacity417 l · 288 l fridge + 129 l freezer
- Niche (H × W × D)180–180.2 × 80–80.4 × min. 65 cm
- IceAutomatic ice maker with Ice Boost
- WaterDoor dispenser, with the stainless steel panel set
- Water connectionRequired
- Energy classE · 284 kWh a year
- Noise level42 dB · class D
80 cm wideStandard
RS80A2
The 80 cm model without water: no dispenser and an ice tray instead of an ice maker, so it needs no water connection. Fit your own kitchen panels or the stainless steel set.
- Capacity417 l · 288 l fridge + 129 l freezer
- Niche (H × W × D)180–180.2 × 80–80.4 × min. 65 cm
- IceIce tray
- WaterNo dispenser
- Water connectionNot needed
- Energy classE · 284 kWh a year
- Noise level42 dB · class D

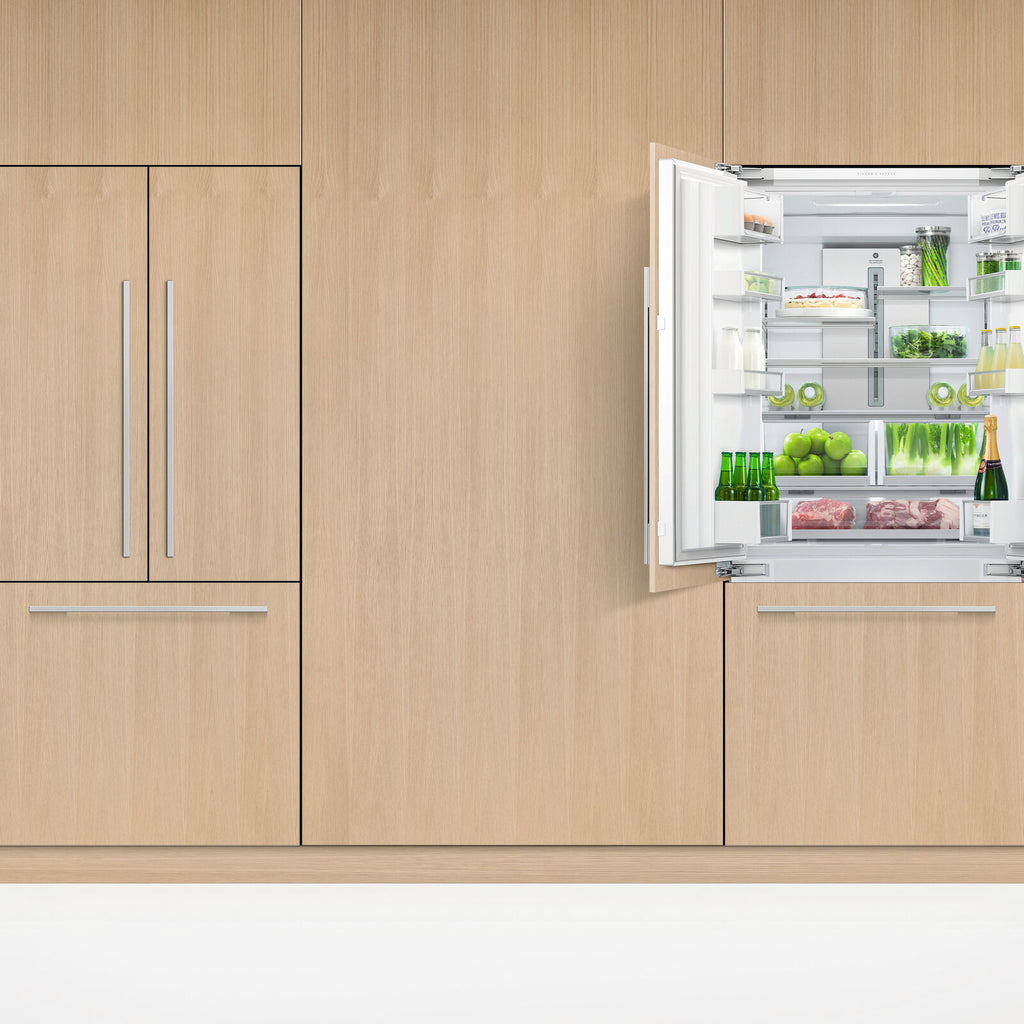

Panel ready
Behind your own kitchen fronts
Fit door panels made to match your kitchen, or Fisher & Paykel's stainless steel panel set, and pick a handle style. The fridge sits flush with the cabinets around it, with gaps of just 4 mm.
Adjustable front and rear feet let the installer level it and line it up with the cabinets.
On this model, the water dispenser requires the stainless steel panel set, sold separately.
On this model, the water dispenser requires the stainless steel panel set, sold separately.
Door panels and handles are not included. The stainless steel panel set and handle kits are sold separately.
Room to keep things fresh
Bins that pull out, shelves that move and a freezer drawer you can see into from above.
1 of 5
It learns how you use it
Fisher & Paykel's ActiveSmart Foodcare learns how you use the fridge and adjusts the temperature, airflow and humidity inside to help keep food fresher for longer.
Adaptive defrost means it defrosts only when needed, and both the fridge and the freezer are frost free.
2 of 5
Bins you can see into
Two fruit and vegetable bins with humidity control pull out to give you full access, and lift out when you want to clean them.
3 of 5
Shelves that move with you
Three adjustable glass shelves, six adjustable door shelves and two covered door shelves. Four bottle holders store bottles on any shelf, and unused ones stack on top of each other.
4 of 5
Spills stay on the shelf
The spill-safe glass shelves catch drips and leaks, and come out for quick cleaning.
5 of 5
A freezer drawer that opens fully
The bottom freezer has a full-extension drawer, so you reach everything from above. It is a 4-star freezer that can freeze 8 kg of food in 24 hours.
Fast Freeze drops the freezer to its coldest setting when you put in fresh food, and Bottle Chill reminds you to take drinks out after 15 minutes.
Ice & Water or Standard
Ice and water, if you want them
RS90AU3 and RS80AU2 have an automatic ice maker in the freezer. Switch it off to free up space, or use Ice Boost to make up to 30 % more ice when you have guests. The slim dispenser in the door fills almost any jug or glass with cool filtered water, without taking up room inside the fridge.
Both need a fixed water connection, and the water filter should be replaced every six months.
RS90A3 and RS80A2 have no dispenser and come with an ice tray, so they need no water connection.
On RS90AU3 and RS80AU2, the water dispenser requires the stainless steel panel set, sold separately.
The four side by side
| RS90AU3 | RS90A3 | RS80AU2 | RS80A2 | |
|---|---|---|---|---|
| Niche width | 90 cm | 90 cm | 80 cm | 80 cm |
| Capacity | 476 l | 476 l | 417 l | 417 l |
| Fridge / freezer | 331 / 145 l | 331 / 145 l | 288 / 129 l | 288 / 129 l |
| Ice | Ice maker | Ice tray | Ice maker | Ice tray |
| Water dispenser | Yes* | – | Yes* | – |
| Water connection | Required | Not needed | Required | Not needed |
| Energy | E · 304 kWh | E · 304 kWh | E · 284 kWh | E · 284 kWh |
* The water dispenser requires the stainless steel panel set, sold separately. All four: niche height 180–180.2 cm, 42 dB (noise class D).
The details
SmartTouch
Controls inside the fridge
Set the fridge and freezer separately, and find Fast Freeze, Bottle Chill, key lock and a Sabbath mode on the same panel.
LED lighting
See what you have
LED lighting illuminates the interior with a crisp, clean light for better visibility.
Doors
Soft close and a door alarm
The doors close softly, and an alarm sounds if the fridge door is left open for 90 seconds or the freezer for 60.
Questions and answers
Which one should I choose?
Pick the width that fits your kitchen: 90 cm for 476 litres, 80 cm for 417 litres. Then decide on water: the Ice & Water models (RS90AU3, RS80AU2) make ice automatically and have a water dispenser (usable with the stainless steel panel set, sold separately), but need a water connection. RS90A3 and RS80A2 need no water connection and come with an ice tray.
What size niche does it need?
A niche 180 to 180.2 cm high, 90 to 90.490 to 90.480 to 80.480 to 80.4 cm wide and at least 65 cm deep. It must be installed by a qualified installer with the anti-tip bracket that comes with it.
Are the door panels and handles included?
No. You can have panels made to match your kitchen, 16 to 19 mm thick and up to 10 kg per door panel, or buy Fisher & Paykel's stainless steel panel set. Handles are sold separately too.
On this model, the water dispenser requires the stainless steel panel set, sold separately.
On this model, the water dispenser requires the stainless steel panel set, sold separately.
Does it need a water connection?
Yes. The ice maker and water dispenser need a fixed cold water connection, fitted by a qualified plumber. Replace the water filter every six months.
Yes. The ice maker and water dispenser need a fixed cold water connection, fitted by a qualified plumber. Replace the water filter every six months.
No. This model has no ice maker or dispenser, so it only needs power.
No. This model has no ice maker or dispenser, so it only needs power.
Can I control it from my phone?
Yes. Once it is connected to your home Wi-Fi network and set up in the app (fisherpaykel.com/connect), you can operate it remotely from your phone and get alerts and notifications. It also receives software updates.
Can I control it from my phone?
Yes. Once it is connected to your home Wi-Fi network and set up in the app (fisherpaykel.com/connect), you can operate it remotely from your phone and get alerts and notifications. It also receives software updates.
How energy efficient and quiet is it?
Energy class E with 304304284284 kWh a year, and 42 dB, noise class D.
Keep fresh and frozen food organised behind your kitchen furniture fronts with this integrated Fisher & Paykel fridge-freezer. With 288 litres of fridge space and a 129-litre bottom freezer, it offers room for chilled groceries and frozen supplies in one appliance.
€5.699,00
