Fisher & Paykel OS60SMTDB1 Steam oven Black
Experience culinary excellence with the Fisher & Paykel OS60SMTDB1 Combi Steam Oven. This sleek, black 60cm oven combines steam and convection cooking for healthier, flavorful meals. Enjoy precise control, easy cleaning, and a modern design that elevates any kitchen.
€6.599,00
Description
Functions & specifications
Auto off
56,5 × 59,6 × 59,8 cm (L×W×H)
63,0 kg
Functions
App‑name
Smart Appliance (guided touchscreen cooking)
Wi‑Fi
Yes
Compatible Operative System
N/A
Timer
Automatic cooking/minute timer
Watch
Yes
No. Of auto programs
N/A
No. Of functions
23
Steam
Steam cooking functions included (steam, steam defrost, steam proof, steam regenerate)
Grill function
Fan grill & grill
Cake program
Yes
Low‑temperature cooking
Slow cook
Defrosting
Steam defrost
Heating time 200°C
N/A
Cleaning
Steam clean (oven), descale cycle, drying cycle
Drying function
Drying cycle
No. Of lights
Halogen lights (number not specified)
Turning plate (cm)
N/A
Inner camera
N/A
Thermometer
Wired temperature sensor included
Thermostat
Safety thermostat
Rotating grill spear
N/A
Hot air cooking possible
True convection oven (fan forced & combinations)
Top‑ and bottom heating elements
N/A
Child safety
Control panel key lock; CoolTouch door; non‑tip shelves
Overheating protection
Safety thermostat
Dual security function
N/A
Child lock on functions
Control panel key lock
Child lock on the door
N/A
Shelf stop
Non‑tip shelves
Auto off
Yes
Surface temperature in the middle of the door (°C)
N/A
Air fry
Yes
Design and placing
Control panel
Intuitive touchscreen display with turned stainless steel dials and illuminated halos
Illuminated display
Yes (touchscreen with illuminated halo dials)
Display color
White
Display type
Touchscreen with multi‑language display
Cavity material
Acid resistant graphite enamel
Temperature max (°C)
230 °C
Temperature min (°C)
35 °C
Built‑in size (HxWxD) mm
Height 598 mm; Width 596 mm; Depth 565 mm
Telescopic rails
Full extension sliding shelves included (but not true telescopic rails)
Door
Balanced oven door; CoolTouch door
Door hinges
Soft‑close door
Softclose
Yes
Type of handle
Turned stainless steel dials with illuminated halos
Reversible door
N/A
Type of storage
N/A
Capacity and consumption
Plug on cable (type)
No
Cable length (cm)
N/A
Cable included
No
Nominal frequency 50/60 Hz
50 Hz
Amperes (A)
15 A
Voltage (V)
220–240 V
Energy consumption year (kWh)
N/A
Energy smart
Smart Appliance capability
Energy class
A
Cavity (Liter)
Total 85 L; usable 72 L
Conventional energy consumption (kWh)
N/A
Energy consumption hot air (kWh)
N/A
Requires technician
Requires installation by qualified installer (built‑in oven)
Power, grill (W)
3000 W
Power lower heating element (W)
N/A
Power hot air (W)
N/A
Power upper heating element (W)
N/A
Energy efficiency index (EEI)
N/A
Microwave max power (W)
N/A
Size of cavity (HxWxD) mm
N/A
Product data & user manual
Product data
Brand:
Fisher & Paykel
SKU: 15310571
EAN: 9415112829172
Content in the box
Fisher & Paykel OS60SMTDB1 Steam oven Black
€6.599,00
Fisher & Paykel Series 11
Steam, sous vide and a full-size oven
A 60 cm combi-steam oven at full oven height. Cook with steam only, with dry heat only, or with both, in an 85 litre cavity with 23 functions. Choose it in Minimal black or grey glass, Minimal Handleless or Contemporary.
Same oven, your style
Inside, all four are the same combi-steam oven. They differ mainly in design.
85l
Total capacity, 72 litres usable, on six shelf positions.
23
Functions, including Steam, Sous Vide, Air Fry and Crisp Regenerate.
A+
Energy class on the EU energy label.
Minimal styleBlack glass
OS60SMTDB1

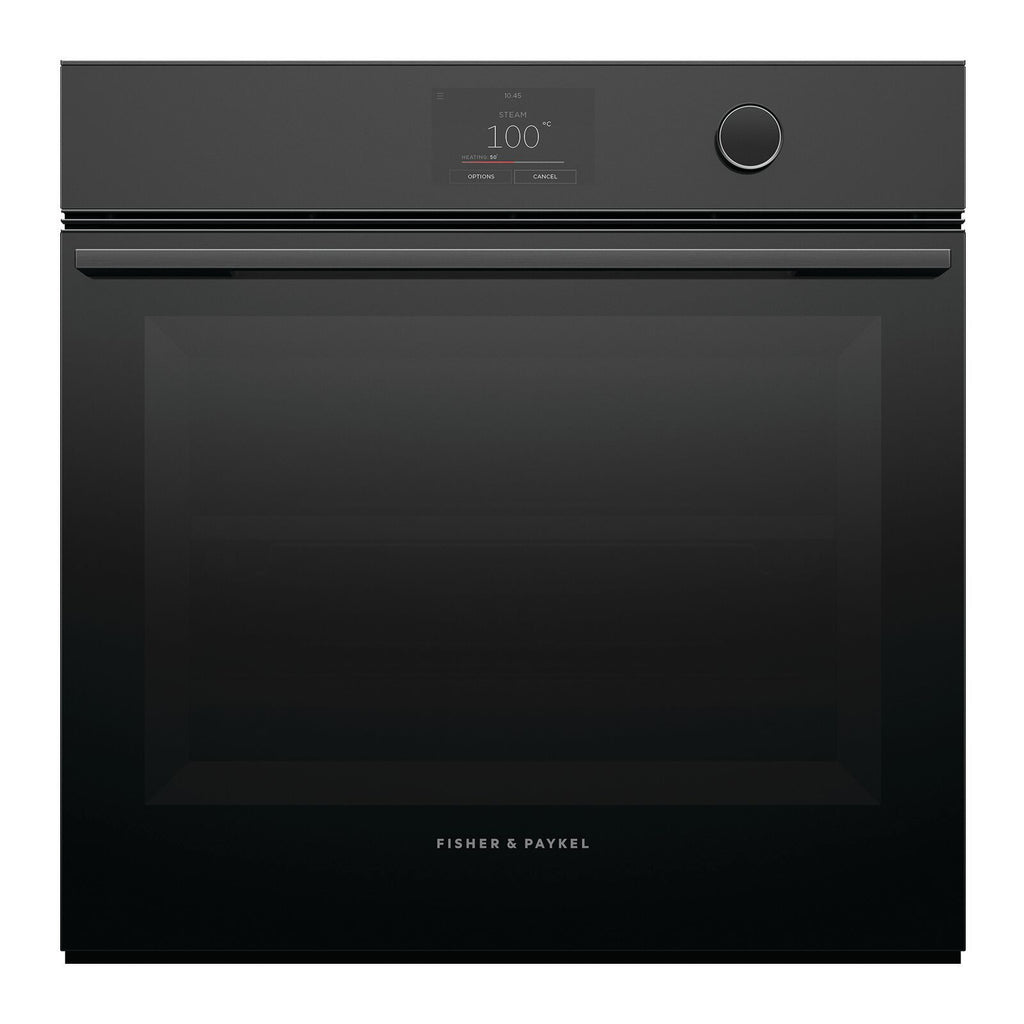

60cm Series 11 Minimal Combi-Steam Oven. Black glass with a black handle and a turned stainless steel dial with an illuminated halo next to the touchscreen.
- Style · finishMinimal · Black Glass
- Controls5" touchscreen and dial
- DoorHandle · soft close
- Capacity85 l total · 72 l usable
- Functions23 · 35–230 °C
- Energy classA+
- Size (H × W × D)59.8 × 59.6 × 56.5 cm
Minimal styleGrey glass
OS60SMTDG1
60cm Series 11 Minimal Combi-Steam Oven. The same oven as OS60SMTDB1 in a subtle grey glass, with a matching handle and a turned stainless steel dial with an illuminated halo.
- Style · finishMinimal · Grey Glass
- Controls5" touchscreen and dial
- DoorHandle · soft close
- Capacity85 l total · 72 l usable
- Functions23 · 35–230 °C
- Energy classA+
- Size (H × W × D)59.8 × 59.6 × 56.5 cm
Minimal HandlelessBlack glass
OS60SMTNB1
60cm Series 11 Minimal Handleless Combi-Steam Oven. No handle and no dial: the door opens and closes at the press of a button, and can be opened by voice through the SmartHQ app.* It also comes with a flat brushed baking tray.
- Style · finishMinimal Handleless · Black Glass
- Controls5" touchscreen · touch-control glass
- DoorButton or voice*
- Capacity85 l total · 72 l usable
- Functions23 · 35–230 °C
- Energy classA+
- Size (H × W × D)59.8 × 59.6 × 56.5 cm
* Voice control needs Wi-Fi, Remote Mode switched on, a SmartHQ account linked to Google's voice assistant and a device compatible with the Google Home app. Only open the door by voice when you can see the oven.
Contemporary styleStainless steel details
OS60SDTDX2
60cm Series 11 Contemporary Combi-Steam Oven. A black finish with stainless steel contrasts: black glass with a brushed stainless steel handle, trim and dial, so the door itself is glass, not steel.
- Style · finishContemporary · Stainless Steel
- Controls5" touchscreen and dial
- DoorStainless steel handle · soft close
- Capacity85 l total · 72 l usable
- Functions23 · 35–230 °C
- Energy classA+
- Size (H × W × D)59.8 × 59.6 × 56.5 cm
Steam, dry heat or both
Each way of cooking gives a different result. This oven does all of them.
1 of 5
Gentle and healthy
With steam, food cooks in its own juices and keeps its nutrients, moisture and flavour. It suits delicate dishes like salmon or snapper.
Steam-only functions include Steam, Sous Vide, Steam Proof, Steam Defrost and Steam Regenerate.
2 of 5
Sous vide, then sear
Fine amounts of steam are released precisely at a range of temperatures, so food cooks gently and evenly. Sous vide steak or salmon before your guests arrive, then simply sear it when you're ready to serve.
Fisher & Paykel's Vacuum Seal Drawer, a separate appliance, is designed to go with it for vacuum-sealing food before sous vide.
3 of 5
Moist inside, browned outside
Steam improves the transfer of heat. Combined with fan heat, it gives roasts and bakes a great texture and better browning.
Choose Fan Forced with low, medium or high steam, depending on the dish.
4 of 5
A full oven as well
Without steam, it works as a regular 60 cm oven with Bake, Classic Bake, Fan Bake, Pastry Bake, Pizza Bake, Roast, Grill, Air Fry, Slow Cook and more. The oven's temperature range is 35 to 230 °C.

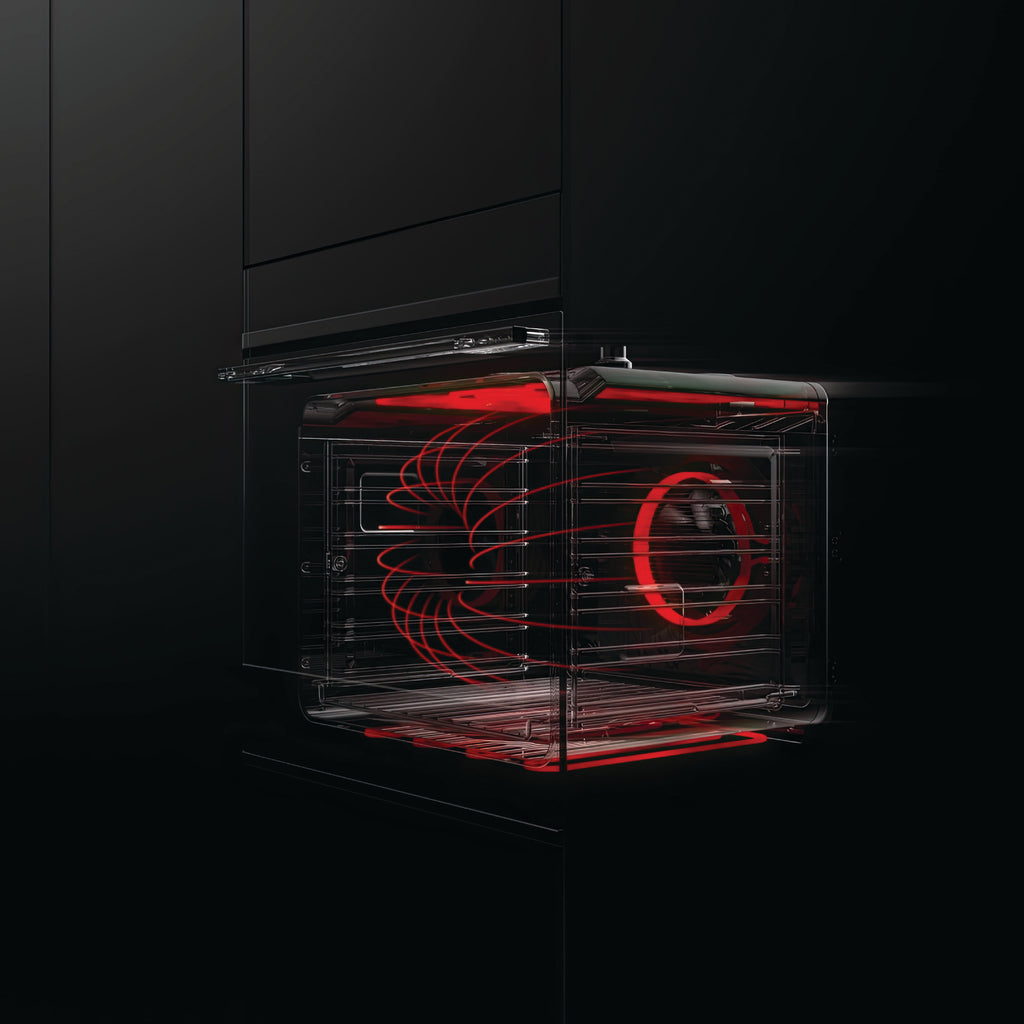

AeroTech circulates heat evenly through the cavity and ActiveVent controls moisture in the convection functions, so you get even results on several shelves at once.
5 of 5
Leftovers like new
Reheating with steam brings moisture back into the food, so meals taste fresh again and you help reduce food waste. Use Steam Regenerate for roasts and risotto, and Crisp Regenerate for pastries, bread and pizza.
Cook with confidence
Help on the screen
New to steam? On the large 5" touchscreen, choose a cooking method or a hero ingredient, and the oven recommends the heat type and temperature. You can also go straight to your favourite functions, or cook by recipe (recipes are available in some display languages only).
A wired temperature sensor is included to monitor cooking in real time, and the oven also works with Fisher & Paykel's Wireless Temperature Sensor.* Connect it to Wi-Fi to use it remotely in the SmartHQ app.
* The Wireless Temperature Sensor is an accessory, sold separately.
Two styles, three looks
Fisher & Paykel designs its appliances in styles, so the steam oven can match an oven, a compact oven or a coffee maker next to it.
OS60SMTDB1 · OS60SMTDG1
Minimal
"Designed to blend seamlessly into the kitchen", with subtle textural and tonal contrasts. Black or grey glass, a matching handle and a dial with an illuminated halo.
OS60SMTNB1
Minimal Handleless
Smooth, uninterrupted lines for kitchens with handle-free fronts. The door opens with a gentle press of a button, or by voice.*
OS60SDTDX2
Contemporary
"A timeless aesthetic featuring clean lines and complementary tonal contrasts": a black finish with a stainless steel handle, trim and dial.
* Voice control needs Wi-Fi, Remote Mode switched on, a SmartHQ account linked to Google's voice assistant and a device compatible with the Google Home app.
Easy care
No water connection needed
The water tank sits behind the control panel. You take it out and fill it with fresh water by hand, so the oven doesn't need a water connection.
Steam Clean helps lift stubborn spills for a quick wipe-down, and there is a descale cycle (two sachets of descaling solution are included) and a drying cycle.
Questions and answers
What is the difference between the four models?
Mainly the design. All four have 85 litres total capacity, 23 functions and the same size and niche. OS60SMTDB1 is Minimal in black glass and OS60SMTDG1 in grey glass, both with a dial and handle. OS60SMTNB1 is Minimal Handleless in black glass, with a button-operated door and touch controls without a dial. OS60SDTDX2 is Contemporary: black glass with a stainless steel handle, trim and dial.
Can it replace a normal oven?
It has the convection functions of a regular oven, such as Bake, Fan Bake, Roast, Grill, Pizza Bake and Air Fry, in a full-height 85 litre cavity. Unlike a pyrolytic oven, it doesn't clean itself at high heat; it has Steam Clean instead.
What niche does it need?
A cabinet 60 cm wide with an opening of at least 58 cm high, 56 cm wide and 55 cm deep, the same as Fisher & Paykel's 60 cm pyrolytic oven. The oven itself is 59.8 × 59.6 × 56.5 cm (H × W × D). It is hard-wired without a plug, and the connection must be made by a qualified electrician. No water connection is needed. To protect the cabinets from condensation, Fisher & Paykel recommends moisture-proofing the niche.
What comes in the box?
Two full-extension sliding shelves, a grill rack, a large steam dish, a large and a small perforated steam dish, a roasting dish, a smokeless grill tray, a step-down wire shelf, the wired temperature sensor and two sachets of descaling solution. This model also comes with a flat brushed baking tray. The steam dishes are not meant for use above 100 °C.
Is a temperature sensor included?
Yes, a wired temperature sensor is included. The Wireless Temperature Sensor is an accessory, sold separately.
Can I control it from my phone?
Yes. Connect it to your Wi-Fi and use the SmartHQ app to operate it remotely and keep its software up to date. You can also link SmartHQ to Google's voice assistant and open the door by voice, using a device compatible with the Google Home app.
How does the handleless door open?
Press the open door button on the control panel and the door opens or closes. You can also open it by voice through SmartHQ and Google's voice assistant. In case of a power cut, the oven comes with a tool for opening the door by hand.
How energy efficient is it?
Energy class A+ on the EU energy label for the OS60S series (scale A+++ to D). It uses 0.90 kWh per cycle in conventional mode and 0.68 kWh in fan-forced mode, with a usable volume of 72 litres.
The Fisher & Paykel OS60SMTDB1 is a sleek 60cm Series 11 Minimal Combi Steam Oven, designed for culinary precision and versatility. Its black finish complements modern kitchens, while the intuitive touch controls and guided cooking functions simplify meal preparation, ensuring perfect results every time.
