Fisher & Paykel DD 60 SHI9 DishDrawer Integrated
The Fisher & Paykel Serie 9 DD 60 SHI9 is a fully integrated dishwasher offering seamless design and advanced cleaning technology. Its flexible racking and quiet operation ensure efficient, hassle-free dishwashing for modern kitchens.
€1.599,00
Recommended Accessories
Description
Functions & specifications
Wi-Fi
55,3 × 59,9 × 41,0 cm (L×W×H)
29,0 kg
Functions
App-name
SmartHQ
Wi-Fi
Yes
Compatible Operative System
N/A
Number of temperature settings
3
No. of programs
6
Extra high
No
Hot water connection
No
Drying system
Hot water
Cutlery
Basket
Lights in cabinet
No
Aqua stop
Yes
Duration of ECO-program (min)
282
Timer
N/A
Delayed start
Yes
Wash at half-filled function
N/A
Digital countdown
N/A
Wireless connection
N/A
Water softener
Yes
Salt indicator
Yes
Program-end indicator
Yes
Rinse aid indicator
N/A
Adjustable upper basket
N/A
Design and placing
Type
Single drawer
Door decor
N/A
Tub material
Plastic
Water inlet hose - length (cm)
125
Water outlet hose - length (cm)
170
Temperature for water inlet max (°C)
60
Extra high
No
Adjustable socket base
N/A
Adjustable feet
No
Control panel location
Integrated
Control panel
N/A
Capacity and consumption
Heating element
Not available
Plug type
Not available
Cable length (cm)
Not available
Cable included
Not available
Energy class
F
Energy consumption year (kWh)
61
Noise level dB(A)
45
Cycle time (min.)
282
Place settings
6
Water consumption, per cycle (L)
7.9
Programm duration, (min.)
Not available
Noise level class
B
Nominal frequency 50/60 Hz
Not available
Amperes (A)
Not available
Power (W)
Not available
Rated voltage (V)
220
Energy consumption standby (W)
Not available
Energy consumption off (W)
Not available
Washing efficiency class
Not available
Drying efficiency class
Not available
Duration standby mode (min)
Not available
Energy smart
Not available
Product data & user manual
Product data
Brand:
Fisher & Paykel
SKU: 09312067
EAN: 9415112816660
Content in the box
User manual
Technical drawing
Fisher & Paykel DD 60 SHI9 DishDrawer Integrated
€1.599,00
Fisher & Paykel DishDrawer™
A dishwasher that opens like a drawer
It opens like any kitchen drawer, and each drawer washes a half load on its own. Choose one drawer, one tall drawer or two, hidden behind your own kitchen front or in stainless steel.
Single, tall or double
All four fit a 60 cm wide opening, take 6 place settings per drawer and run at 43 dB.
6
Place settings in each drawer – a half load you can wash on its own.
6+3
Wash programmes, plus Quick, Sanitise and Extra Dry options.
43dB
Noise level, class B, on the current energy label.
Single drawerSeries 9 · integrated
DD60SHI9
One standard-height drawer for a half load. It takes your own front panel and handle, so it blends in with the cabinets around it.
- Place settings6
- Plates up to28 cm
- Size (H × W × D)41 × 59.9 × 55.3 cm
- FrontYour own panel and handle
- Energy classF · 61 kWh per 100 cycles
- Water7.9 l per Eco cycle
- Noise level43 dB · class B
Tall single drawerSeries 9 · integrated
DD60SHTI9
One tall drawer with extra height for larger dishes, up to 31 cm plates. Fit it at bench height for easy loading with minimal bending, behind a front that matches your kitchen.
- Place settings6
- Plates up to31 cm
- Size (H × W × D)45.4 × 59.9 × 55.3 cm
- FrontYour own panel and handle
- Energy classF · 61 kWh per 100 cycles
- Water7.9 l per Eco cycle
- Noise level43 dB · class B
Double drawerSeries 9 · integrated
DD60DHI9
Two drawers that work independently. Wash one while you load the other, or run both at once on different programmes. Each drawer takes its own front panel and handle.
- Place settings12 · 6 per drawer
- Plates up to28 cm
- Size (H × W × D)82–88 × 59.9 × 55.3 cm
- FrontYour own panels and handles
- Energy classE · 54 kWh per 100 cycles per drawer
- Water7.8 l per drawer per Eco cycle
- Noise level43 dB · class B
Double drawerSeries 7 · Contemporary
DD60DCHX9
The ready-finished double: stainless steel fronts and handles, controls on the front, and no panel to add. It is built in under the worktop, and the two drawers wash independently.
- Place settings12 · 6 per drawer
- Plates up to28 cm
- Size (H × W × D)82–88 × 59.9 × 57.3 cm
- FrontStainless steel
- Energy classE · 54 kWh per 100 cycles per drawer
- Water7.8 l per drawer per Eco cycle
- Noise level43 dB · class B
Easy to use

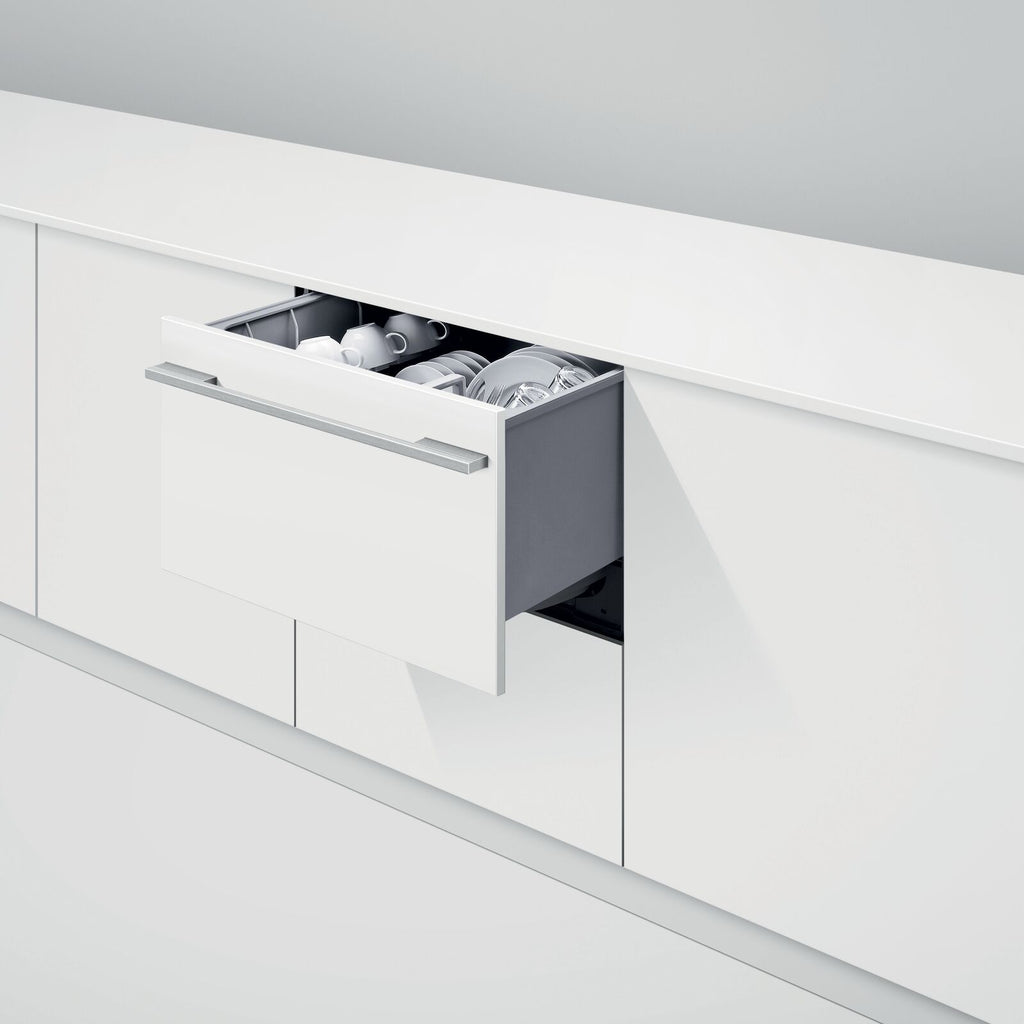

Load it like a drawer
A DishDrawer opens and closes like a kitchen drawer, so loading is simple. Each drawer holds a half load of 6 place settings, for small washes and a fast turnaround of your dishes.
The tall drawer has extra height for larger dishes. Fitted at bench height, it lets you load with minimal bending.
With two drawers, wash one while you load the other, or run both at the same time on different programmes – fine glass in one, heavily soiled pots and pans in the other.
Integrated

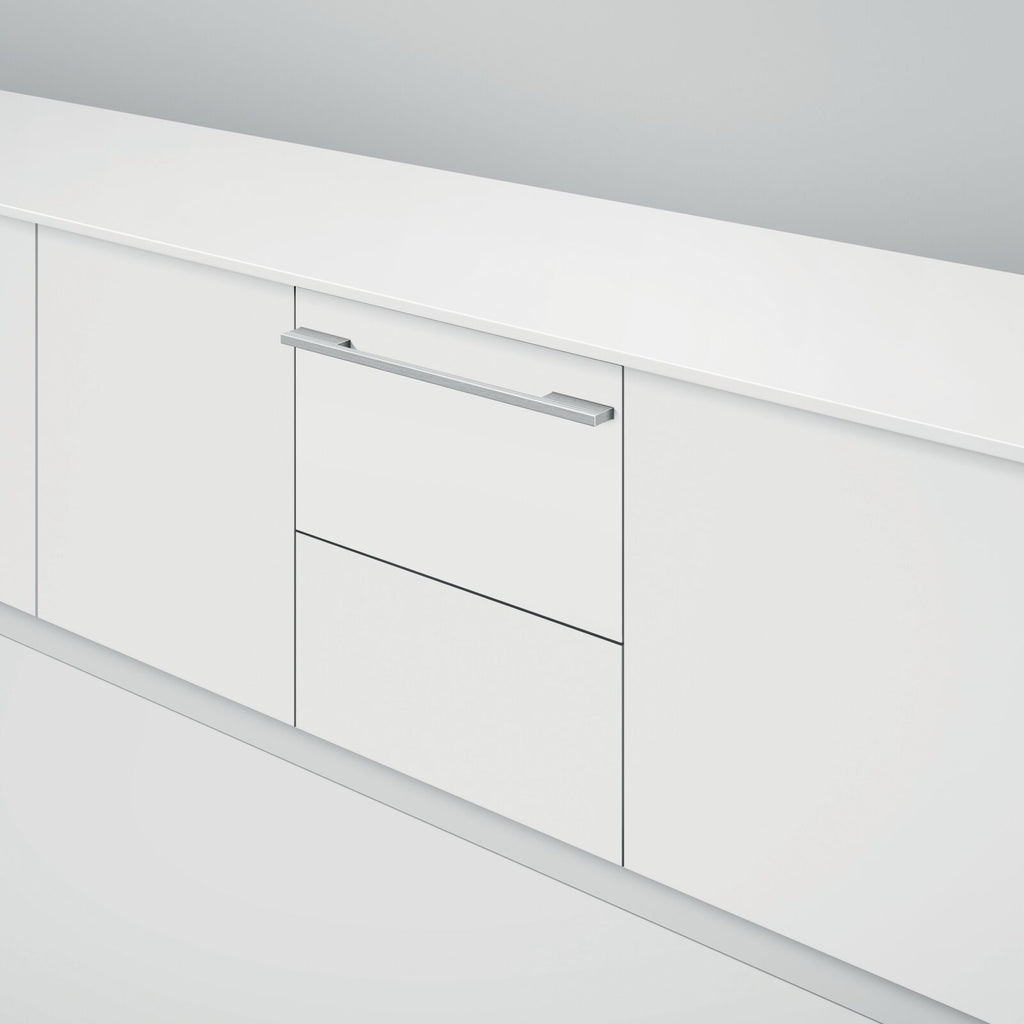

Hidden behind your kitchen front

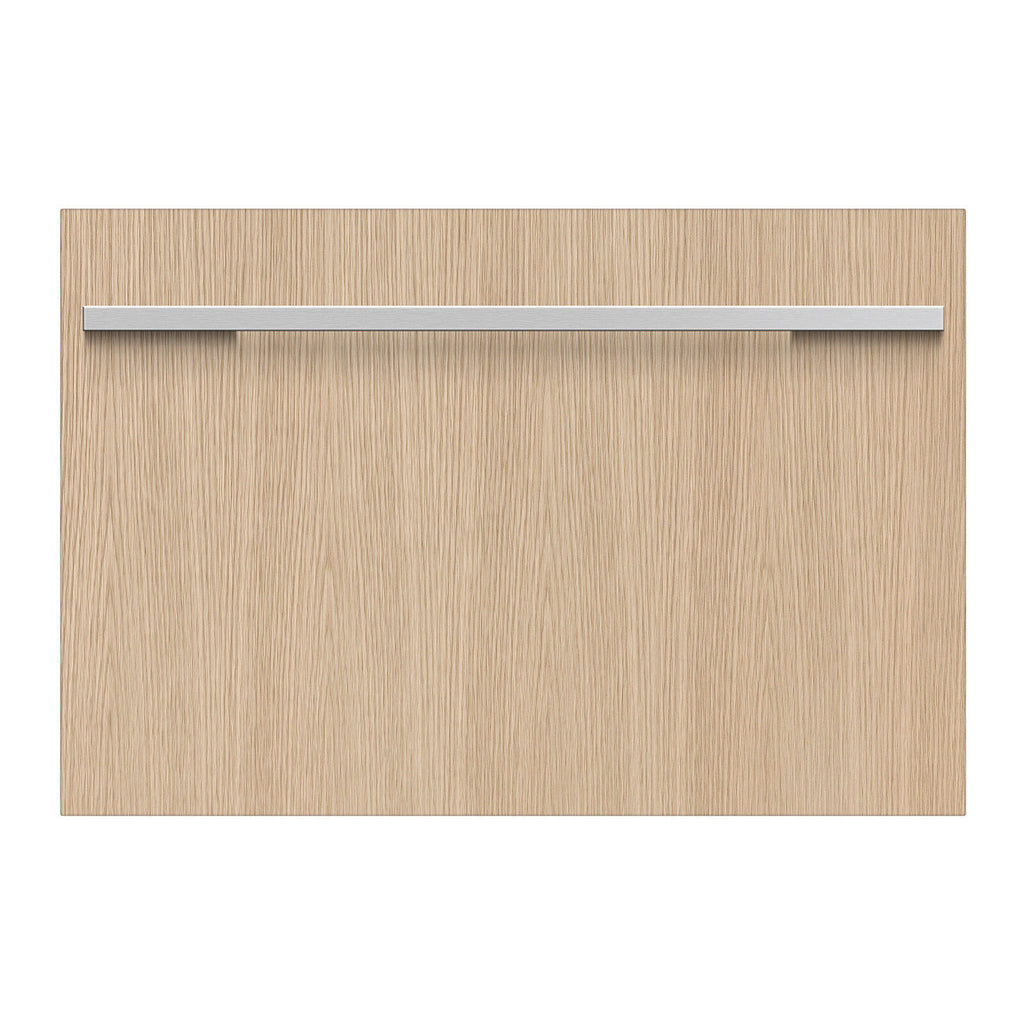

This DishDrawer is panel ready. Fit a front panel and handle that match your kitchen cabinets, or a Fisher & Paykel door panel in stainless steel or black stainless steel. The controls sit inside the drawer, so the front stays clean and uninterrupted.
Missed a dish? Knock on the front to pause the wash, wait for the beeps, add it and press start again.
The front panel and handle are not included and must be bought separately – one of each for each drawer. Fisher & Paykel door panels and handle kits are available.
Ready-finished
Stainless steel, ready to go
DD60DCHX9 comes with stainless steel fronts and handles, designed to match Fisher & Paykel's other kitchen appliances. There is no panel or handle to add.
It is built in under the worktop, and the controls sit on the front of the drawer.
Clean, from glass to pans
Six programmes, three extra options and racks that adapt to the load.
1 of 3
Six programmes
Heavy, Medium, Eco, Fast, Delicate and Rinse – for everything from fine glass to heavily soiled pots and pans.
Set a delayed start of up to 12 hours, and lock the controls with the keylock.
2 of 3
Quick, Sanitise and Extra Dry
Quick gives a faster wash while keeping the performance, using extra water and energy to do so. Sanitise adds extra protection in the final rinse. Extra Dry is made for plastic dishes.
According to Fisher & Paykel, Sanitise kills 99.9 % of bacteria in the final rinse.
3 of 3
Room for the big things
Fold the tines down to fit pots and pans, adjust the pitch of the tines, and raise, lower or fold the cup racks. A cutlery basket, a knife clip and a multipurpose clip are included.
Round plates up to 283128 cm fit.
The details
Quiet
43 dB, noise class B
It does its job without making a fuss.
Wi-Fi
Follow it on your phone
Connect it to your home Wi-Fi and the SmartHQ™ app for alerts and notifications, monitoring and software updates.
Water softener
Built in
A water softener is built in, and you set it to match the hardness of your water.
Drying
Fan-assisted drying
A fan helps the dishes dry at the end of the cycle. Choose Extra Dry for plastics.
Safety
Flood protection
Flood protection, a keylock for the controls and a fault indicator are built in.
Rinse aid
A reminder to top up
An indicator light tells you when the rinse aid needs refilling, and a beep tells you when the wash is done.
Questions and answers
Is a front panel included?
No. This is an integrated, panel-ready DishDrawer, so you need a front panel and a handle for each of the two drawers. Use a panel that matches your kitchen cabinets (16–20 mm thick, up to 9 kg including the handle), or a Fisher & Paykel door panel in stainless steel or black stainless steel, sold separately, as are Fisher & Paykel handle kits.
No panel is needed. DD60DCHX9 comes with stainless steel fronts and handles.
What size niche does it need?
An opening at least 41.2 cm high, 60–61 cm wide and 57.9 cm deep. The supplied external venting kit must be installed – through the same cabinet, a neighbouring cabinet or the floor.
An opening at least 45.6 cm high, 60 cm wide and 57.9 cm deep. The supplied external venting kit must be installed – through the same cabinet, a neighbouring cabinet or the floor.
An opening at least 82 cm high, 60–61 cm wide and 57.9 cm deep, with a toe kick area of 10–16 cm. A toe kick is included.
An opening at least 82 cm high, 60–61 cm wide and 57.9 cm deep, with a toe kick area of 10–16 cm. A toe kick is included.
Fisher & Paykel says installation should be done by a Fisher & Paykel trained service technician or another qualified person.
Can I run a small load?
Yes, that is what it is made for. The drawer holds a half load of 6 place settings. If you want two drawers, choose DD60DHI9 or DD60DCHX9.
Yes. Each drawer holds a half load of 6 place settings and works independently, so you can run one drawer or both, on the same or different programmes.
How do I pause a wash?
Knock on the front of the drawer. Wait for the beeps before you open it, and press start to carry on.
Press the pause button on the control panel and wait for the tones before you open the drawer.
How much energy and water does it use?
Energy class F: 61 kWh per 100 cycles and 7.9 litres of water per cycle on the Eco programme, which takes 4 hours 42 minutes.
Energy class E: 54 kWh per 100 cycles and 7.8 litres of water per cycle, per drawer, on the Eco programme, which takes 4 hours 3 minutes.
Can I control it from my phone?
Yes. It connects to your home Wi-Fi and works with the SmartHQ™ app, which you download via fisherpaykel.com/connect. Fisher & Paykel currently lists the SmartHQ™ app as supported in Denmark, Sweden and Finland, among other EU countries; Norway is not on the list.
The Fisher & Paykel Serie 9 DD 60 SHI9 is a fully integrated dishwasher designed for seamless kitchen aesthetics. Its sleek design allows it to blend effortlessly with your cabinetry, providing a clean and modern look. The intuitive controls and flexible racking system make it user-friendly and adaptable to various dishwashing needs.
