Witt WIU6060P-2P23 Integrierter Wein Schwarz
Ein integrierbarer Weinkühlschrank von Witt in Schwarz zur gezielten Lagerung von Wein im Einbauformat.
€2.499,00
Abholung derzeit nicht verfügbar
Pay with:
Witt WIU6060P-2P23 Integrierter Wein Schwarz
€2.499,00
Witt built-in wine cabinets
Wine that fits into your kitchen
Six wine cabinets, 60 cm wide, for a 45 or 60 cm niche in a tall cabinet or for the space under the worktop. Choose a black glass door or a front that matches your kitchen.
Find the right size
From 20 to 36 bottles. Pick the one that fits your niche, then choose black glass or your own front.
45 cm niche20 bottles · 1 zone
WIU6045P-1B20
The compact one, for a 45 cm niche in a tall cabinet. A black glass door with no handle, and two wooden shelves that slide all the way out.
- Bottles20
- Temperature1 zone · 5–20 °C
- Size (H × W × D)45.5 × 59.5 × 55.9 cm
- Niche height450 mm
- DoorBlack glass · push to open
- Energy classE · 69 kWh a year
- Noise level36 dB · class B
60 cm niche23 bottles · 2 zones
WIU6060P-2B23
For a 60 cm niche in a tall cabinet, with two zones that you set separately. A black glass door with no handle, and three wooden shelves that slide all the way out.
- Bottles23
- Temperature2 zones · each 5–20 °C
- Size (H × W × D)59.5 × 59.5 × 55.9 cm
- Niche height590–593 mm
- DoorBlack glass · push to open
- Energy classF · 99 kWh a year
- Noise level36 dB · class B
60 cm niche23 bottles
WIU6060P-2P23

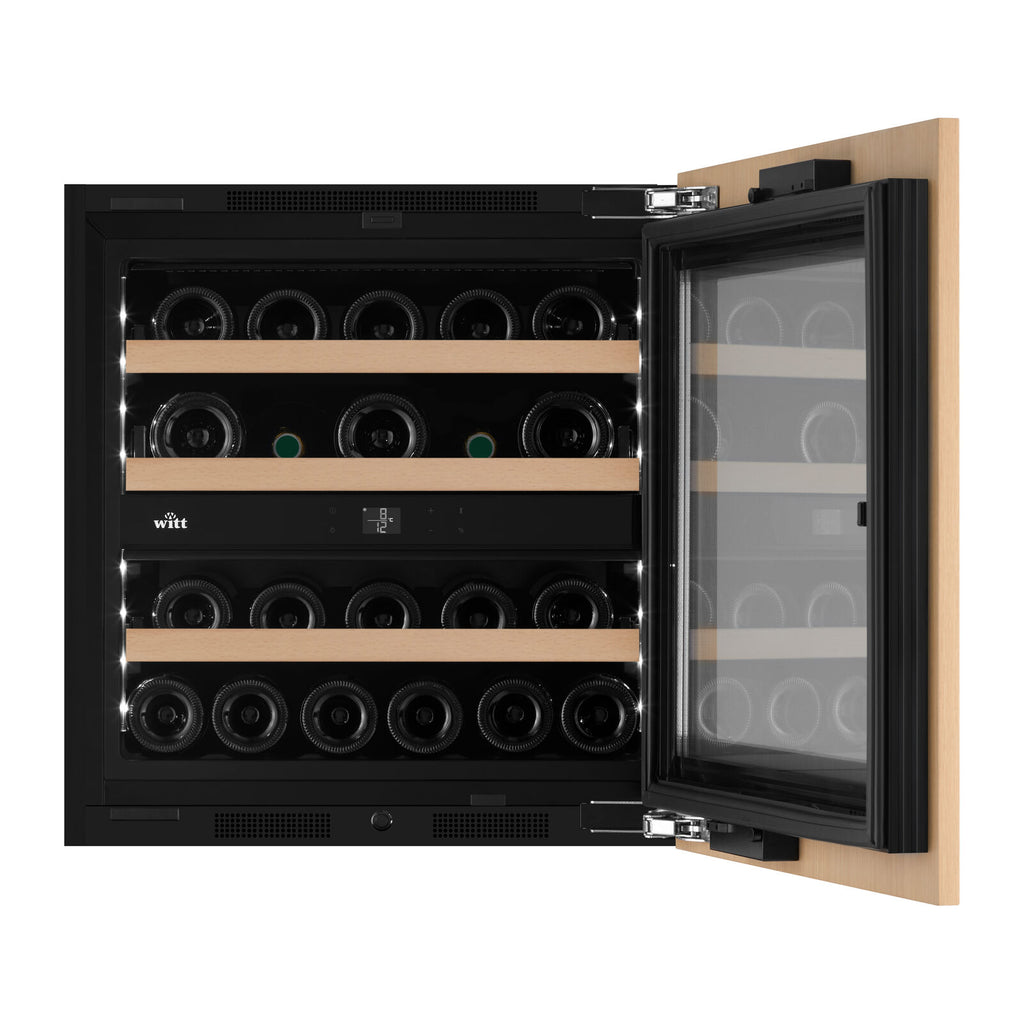

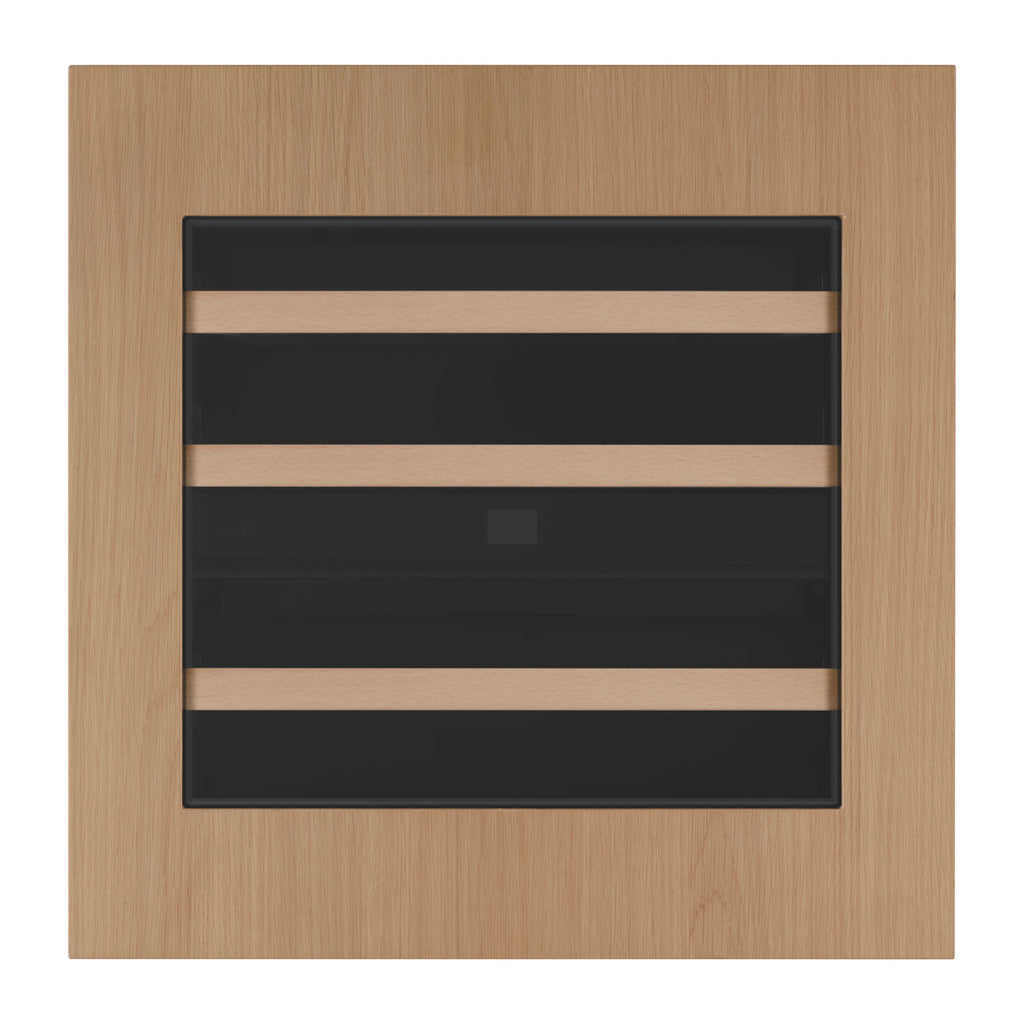

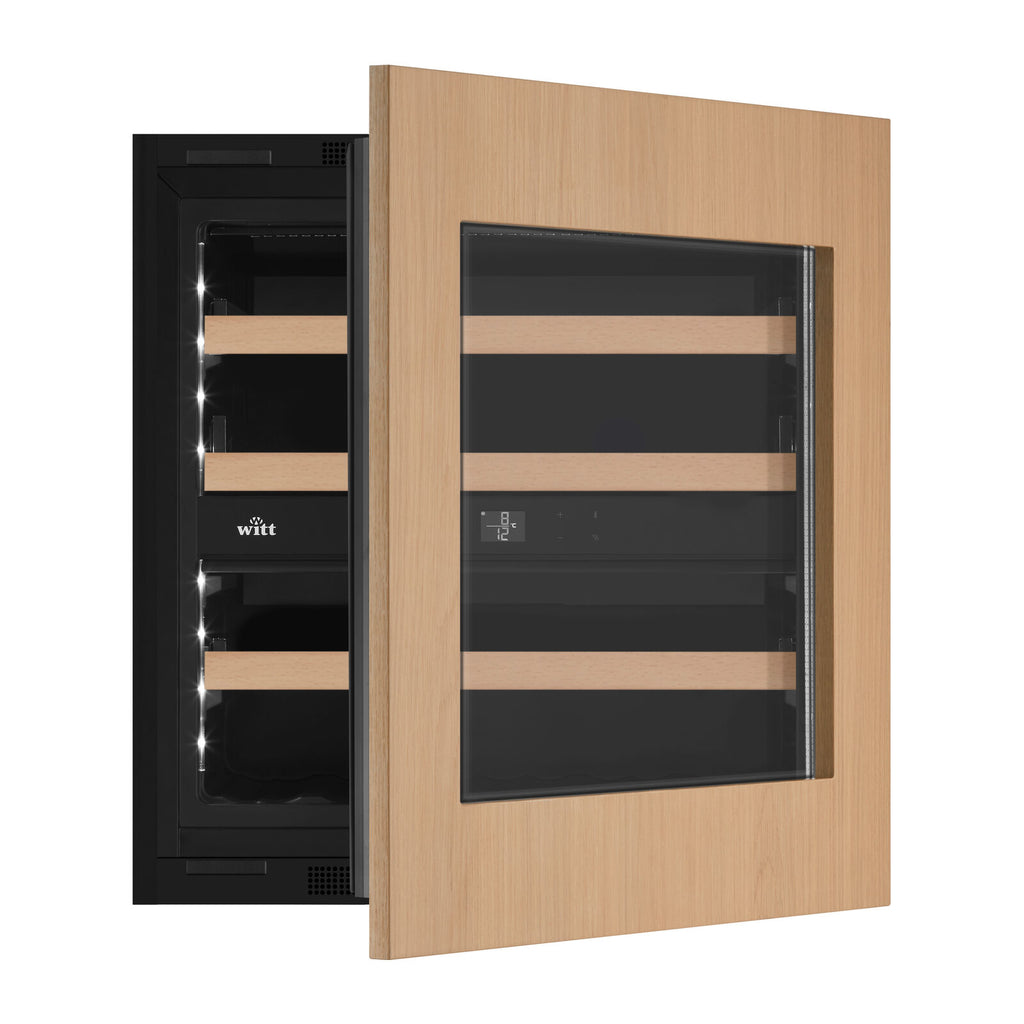

The panel-ready version for a 60 cm niche. Your own kitchen front becomes a frame around the glass door, so the bottles stay in view.
- Bottles23
- Size (H × W × D)59.5 × 59.2 × 55.9 cm
- Niche height590–593 mm
- DoorYour own front, 18 mm, with a window
- Energy classF · 99 kWh a year
- Noise level36 dB · class B
Under the worktop33 bottles · 2 zones
WIU6070P-2B33
Built in under the worktop, 70 cm high, with two zones that you set separately. A black glass door with no handle and three wooden shelves.
- Bottles33
- Temperature2 zones · each 5–20 °C
- Size (H × W × D)70 × 59.5 × 55.9 cm
- Niche height666–671 mm
- DoorBlack glass · push to open
- Energy classF · 100 kWh a year
- Noise level36 dB · class B
Under the worktop33 bottles · 2 zones
WIU6070P-2P33
The panel-ready version for under the worktop, 70 cm high. Your own kitchen front frames the glass door.
- Bottles33
- Temperature2 zones · each 5–20 °C
- Size (H × W × D)70 × 59.5 × 55.9 cm
- Niche height666–671 mm
- DoorYour own front, 18 mm
- Energy classF · 100 kWh a year
- Noise level36 dB · class B
Under the worktop36 bottles · 2 zones
WIU6078P-2P36
The tallest of the six, 78 cm, for a higher space under the worktop. Panel-ready: your own kitchen front frames the glass door.
- Bottles36
- Temperature2 zones · each 5–20 °C
- Size (H × W × D)78 × 59.5 × 55.5 cm
- Niche height740–745 mm
- DoorYour own front, 18 mm
- Energy classF · 100 kWh a year
- Noise level36 dB · class B
Side by side
| WIU6045P-1B20 | WIU6060P-2B23 | WIU6060P-2P23 | WIU6070P-2B33 | WIU6070P-2P33 | WIU6078P-2P36 | |
|---|---|---|---|---|---|---|
| Fits | Tall cabinet | Tall cabinet | Tall cabinet | Under the worktop | Under the worktop | Under the worktop |
| Niche height | 450 mm | 590–593 mm | 590–593 mm | 666–671 mm | 666–671 mm | 740–745 mm |
| Door | Black glass | Black glass | Your own front | Black glass | Your own front | Your own front |
| Bottles | 20 | 23 | 23 | 33 | 33 | 36 |
| Zones | 1 | 2 | – | 2 | 2 | 2 |
| Energy | E · 69 kWh | F · 99 kWh | F · 99 kWh | F · 100 kWh | F · 100 kWh | F · 100 kWh |
| Noise | 36 dB · B | 36 dB · B | 36 dB · B | 36 dB · B | 36 dB · B | 36 dB · B |
Bottles: standard 0.75 litre bottles. All six are 59.5 cm wide at the front.
Four niche heights
All six need a niche at least 556 mm wide. The difference is the height, and where in the kitchen it sits.
1 of 4
45 cm, in a tall cabinet
WIU6045P-1B20 fits a niche 450 mm high, at least 556 mm wide and at least 545 mm deep. The front is 595 mm wide and 455 mm high.
2 of 4
60 cm, in a tall cabinet
WIU6060P-2B23 and WIU6060P-2P23 fit a niche 590–593 mm high and at least 556 mm wide. The niche must be at least 545 mm deep for WIU6060P-2B23 and at least 555 mm deep for WIU6060P-2P23.
3 of 4
70 cm, under the worktop
WIU6070P-2B33 and WIU6070P-2P33 fit a space 666–671 mm high and at least 556 mm wide. The space must be at least 545 mm deep for WIU6070P-2B33 and at least 555 mm deep for WIU6070P-2P33.
Witt's manual gives a worktop height of 820 to 890 mm for building in under the worktop.
4 of 4
78 cm, under the worktop
WIU6078P-2P36 fits a space 740–745 mm high, at least 556 mm wide and at least 555 mm deep, shown with an 18 mm front fitted.
Black glass
Push, and it opens
WIU6045P-1B20, WIU6060P-2B23 and WIU6070P-2B33 have a door in black and light grey glass without a handle. Push the door and it opens.
The glass is UV-protected, the door closes softly, and it comes hinged on the right but can be moved to the left.
On WIU6070P-2B33, Witt's manual explains that the door opens a little when you push, and you pull it the rest of the way. The sensitivity can be adjusted with a screw on the door.
Panel-ready
Framed by your kitchen
WIU6060P-2P23, WIU6070P-2P33 and WIU6078P-2P36 take a front that matches your kitchen. The front frames the glass door, so you can still see the bottles.
For WIU6060P-2P23, Witt's drawing shows an 18 mm panel of 595 × 600 mm with a window cut out, leaving at least 75 mm of frame at the sides and 100 mm at the top and bottom. The drawings for WIU6070P-2P33 and WIU6078P-2P36 also show an 18 mm front.
Inside
Zones
Upper and lower
WIU6060P-2B23 and the 70 and 78 cm models have two zones that you set separately. WIU6045P-1B20 has one. You'll find each model's range in its details above.
Witt's advice
Storing or serving
Witt's manual suggests 11–14 °C for storing wine over time. For serving: 5–10 °C for champagne and white wine, and 15–20 °C for red.
Shelves
Wooden shelves
WIU6045P-1B20 has two and WIU6060P-2B23 three wooden shelves that slide all the way out. WIU6070P-2B33 has three wooden shelves.
Air
Charcoal filter
WIU6045P-1B20, WIU6060P-2B23 and WIU6070P-2B33 have an active charcoal filter for the air inside.
Light
Function or Showcase
On the 70 and 78 cm models, the LED light comes on when you open the door, or stays on in Showcase mode. You can dim both the light and the display.
Peace of mind
Alarms and memory
The black-glass models and the 70 and 78 cm models warn you if the door is open or the temperature is off. The 70 and 78 cm models also keep your setting after a power cut and have a Sabbath mode.
Questions and answers
What niche does it need?
A niche 450 mm high, at least 556 mm wide and at least 545 mm deep, in a tall cabinet.
A niche 590–593 mm high, at least 556 mm wide and at least 545 mm deep, in a tall cabinet.
A niche 590–593 mm high, at least 556 mm wide and at least 555 mm deep, in a tall cabinet.
A space under the worktop 666–671 mm high, at least 556 mm wide and at least 545 mm deep.
A space under the worktop 666–671 mm high, at least 556 mm wide and at least 555 mm deep.
A space under the worktop 740–745 mm high, at least 556 mm wide and at least 555 mm deep.
You'll find the drawings for all four heights above, under "Four niche heights".
How is it ventilated under the worktop?
For WIU6070P and WIU6078P, Witt's manual says: if the cabinet is fully built in, in a kitchen with a plinth, the plinth needs ventilation openings of at least 300 cm². A height-adjustable ventilation grille hides the feet.
Which front do I need for the panel-ready models?
None. WIU6045P-1B20 comes with its black glass door.
None. WIU6060P-2B23 comes with its black glass door.
None. WIU6070P-2B33 comes with its black glass door.
WIU6060P-2P23: an 18 mm panel, 595 × 600 mm, with a window cut out. Keep at least 75 mm of frame at the sides and 100 mm at the top and bottom. It's fixed through eight 2.2 mm holes, 7 mm deep.
WIU6070P-2P33 and WIU6078P-2P36: Witt's drawings show an 18 mm front.
Which side does the door open?
WIU6045P-1B20, WIU6060P-2B23 and WIU6070P-2B33 come hinged on the right, and the door can be moved to the left.
Can it be locked?
WIU6045P-1B20, WIU6060P-2B23 and WIU6070P-2B33 have no lock.
Which room temperature does it need?
WIU6045P-1B20, WIU6060P-2P23, WIU6070P-2B33, WIU6070P-2P33 and WIU6078P-2P36 are made for rooms from 16 to 38 °C (climate class subtropical).
How much energy does it use, and how quiet is it?
Energy class E, 69 kWh a year.
Energy class F, 99 kWh a year.
Energy class F, 99 kWh a year.
Energy class F, 100 kWh a year.
Energy class F, 100 kWh a year.
Energy class F, 100 kWh a year.
All six: 36 dB, noise class B.
Dieser integrierbare Weinkühlschrank von Witt bietet Ihren Weinen einen eigenen Platz zur Lagerung.
