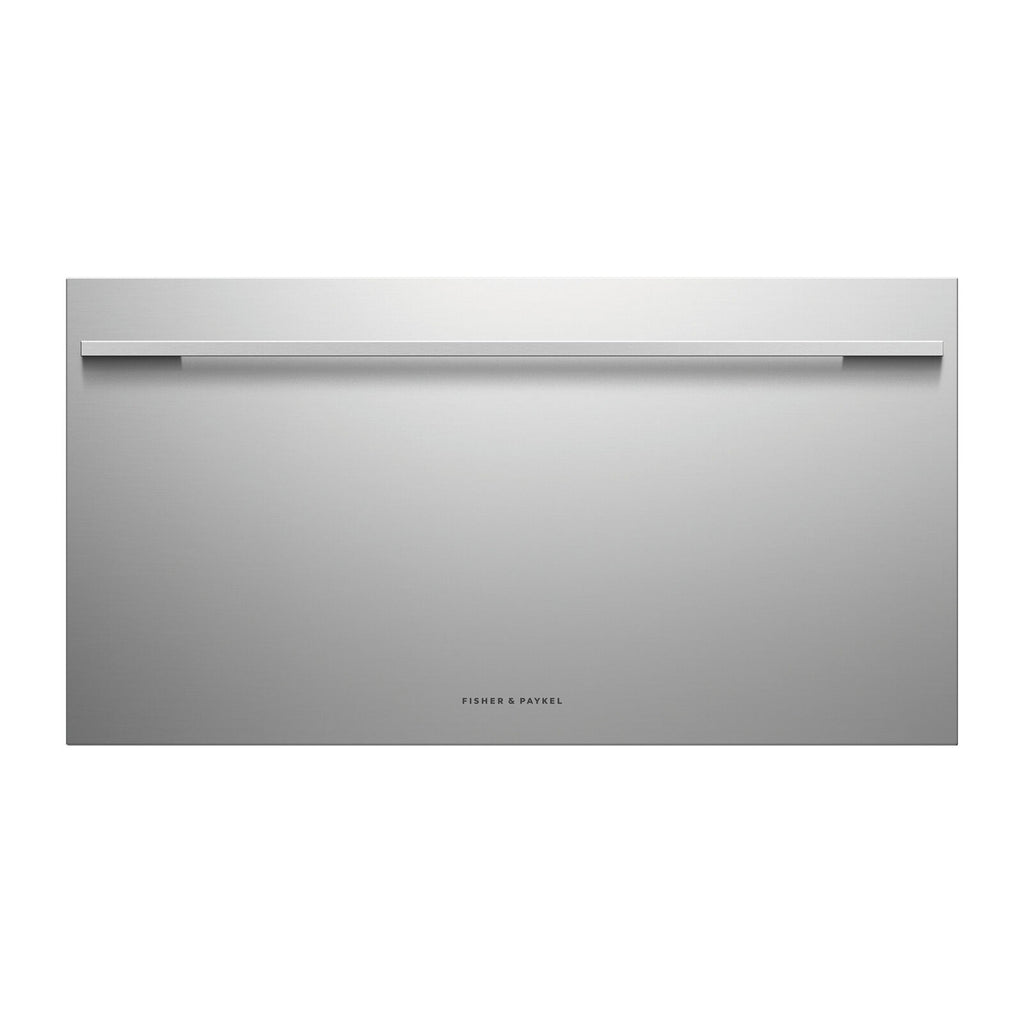

Fisher & Paykel RB9064S1 Fridge Integrated
The Fisher & Paykel Serie 9 RB9064S1 is a 90 cm fully integrated refrigerator offering seamless kitchen integration. It features advanced cooling technology, customizable storage, and energy efficiency, ensuring fresh food preservation and a sleek design.
€4.499,00
Description
Functions & specifications
55,7 × 85,5 × 64,0 cm (L×W×H)
66,0 kg
Functions
App-name
N/A
Wi-Fi
N/A
Compatible Operative System
N/A
Energy smart
N/A
0-zone
N/A
Door alarm
Yes
Air circulation
Yes
Freshness technologies
NoFrost
Voice control
No
Separate on/off button for fridge/freezer
N/A
Child safety
N/A
Lock on door
No
No. of shelves
N/A
Design and placing
Charcoal filter
N/A
Compressor type
Normal compressor
No. of compressors
1
Control panel
+/-
Placing of display
Internal
Display color
Red
Temperature control
N/A
Temperature display
No
Door panel decor
Accessories
Type of lights
LED
Moist control in the vegetable drawer
N/A
Vegetable drawer
Yes
Fixed water supply to ice machine
No
Temperature zone
1
Thermostat type
Electronic
Water/ice dispenser
No
No. of 0-zone drawers
N/A
No. of bottle shelves
N/A
No. of baskets for the freezer
3
No. of glass shelves
N/A
No. of vegetable drawers
N/A
No. of plastic shelves
N/A
No. of shelves in the freezer
N/A
No. of steel shelves
N/A
No. of wooden shelves
N/A
Inner camera (accessories)
N/A
No. of stars (*) freezer
N/A
Climate class
N/A
Lowest suitable room temperature (°C)
N/A
Highest suitable surrounding temperature (°C)
N/A
Door mounted
N/A
Reversable doors
No
Door
N/A
Door hinges
Drawer
Soft close on door
No
Type of handle
N/A
Depth incl. door handle
N/A
UV-protected door
N/A
Wheels
No
Adjustable feet
No
Place side by side
N/A
Sidewall heating
N/A
Soft close on vegetable drawer
No
No. of telescopic rails
2
Type of telescopic rails
N/A
Capacity and consumption
Plug type
N/A
Cable length (cm)
85
Cable mounted
N/A
Nominal frequency 50/60 Hz
50Hz
Connected power (A)
N/A
Rated voltage (V)
220-240
Energy class
F
Energy consumption year (kWh)
229-328
Cooling volume (L)
104
Freezing volume net (l)
N/A
Noise level (dB)
39
Max no. of bottles/cans
N/A
Noise emission class dB(A)
C
Total display area (m²)
N/A
Highest temperature with chilled operating temperatures (°C)
N/A
Lowest temperature with chilled operating temperatures
N/A
Energy efficiency index (EEI)
N/A
Built-in size (HxWxD) mm
N/A
Freezing volume gross (l)
N/A
Freezing capacity (kg/24h)
N/A
Coolant type
R600a
Coolant type weight (g)
45
Storage time in the event of power failure (hours)
N/A
Requires technician
Yes
Product data & user manual
Product data
Brand:
Fisher & Paykel
SKU: 15310032
EAN: 9415112260609
Content in the box
Fisher & Paykel RB9064S1 Fridge Integrated
€4.499,00
Fisher & Paykel Series 9 CoolDrawer
One drawer, five kinds of cold
A 90 cm drawer that fits under the worktop and changes job at the push of a button: freezer, chill drawer, fridge, pantry or wine drawer.
5
Food modes in one drawer: freezer, chill, fridge, pantry and wine.
104
Litres in a single, full-extension drawer.
64cm
High, made to fit under the worktop.
85.5 cm widePanel ready
RB9064S1
A multi-temperature drawer for under the worktop. Use it as extra freezer space today and as a fridge or wine drawer tomorrow. Fit a panel that matches your kitchen or the stainless steel panel.
- ModesFreezer · Chill · Fridge · Pantry · Wine
- Capacity104 l
- Size (H × W × D)64 × 85.5 × 55.7 cm
- Niche, minimum (H × W × D)64.4 × 86.4 × 56 cm
- Energy classE · 82 kWh (fridge mode) / 197 kWh (freezer mode) a year
- Noise level39 dB · class C
Choose a mode
Each mode sets the right temperature for a different kind of food. Change it whenever your needs change.
-18 °C1 of 5
Freezer
For everyday frozen food and longer storage. Freezer mode adds three functions: Bottle Chill to cool drinks quickly, Fast Freeze for fresh food, and Deep Freeze at -25 °C.
-0.5 °C2 of 5
Chill
For highly perishable meat, poultry and seafood. Chill mode keeps the drawer at -0.5 °C, just above the temperature at which meat freezes.
3 °C3 of 5
Fridge
For most foods: fruit, vegetables, dairy and drinks. The compact upper tray suits delicate foods, and the tall bin takes large bottles and containers.
12 °C4 of 5
Pantry
For food that likes a cool, dark place, such as tropical fruit, tomatoes and cereals.
7–15 °C5 of 5

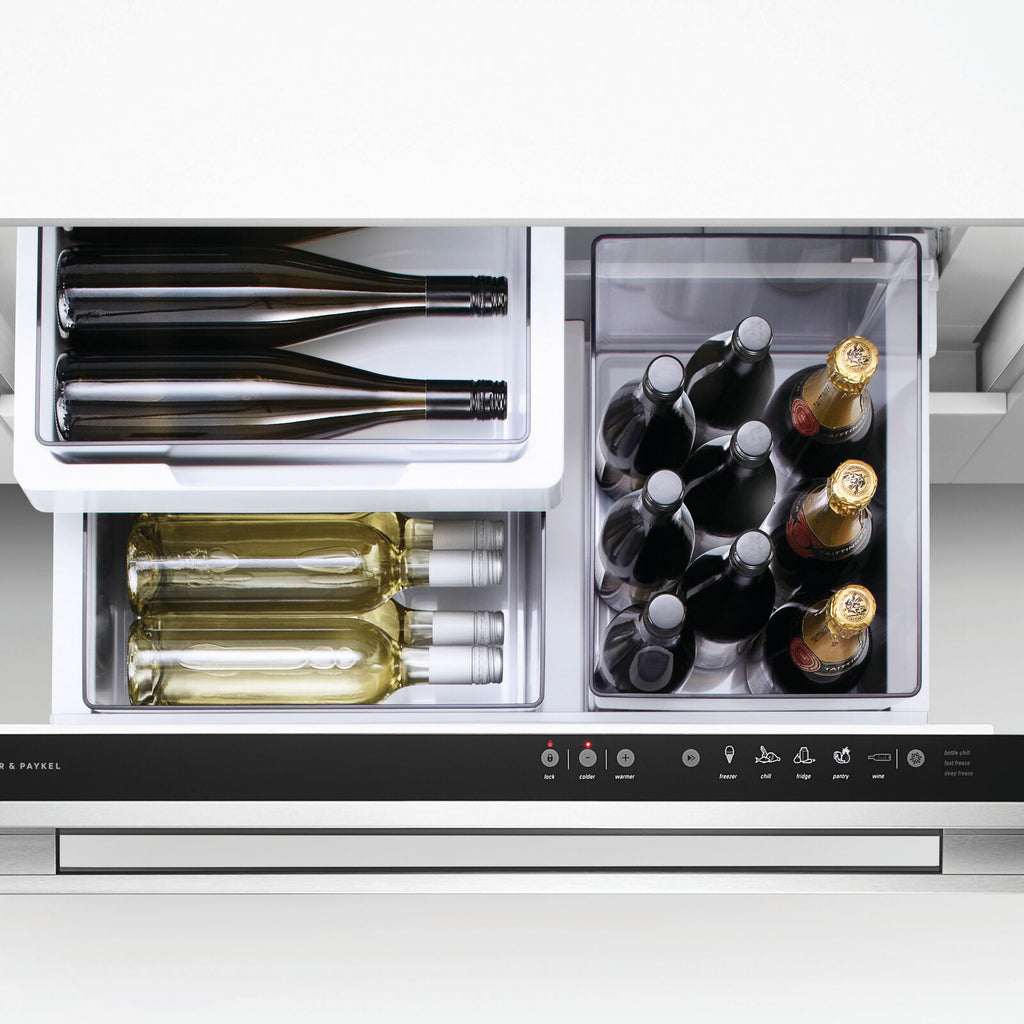

Wine
Store all your wine long-term at 12 °C, or short-term at 7 °C for white wine and 15 °C for red.
Fully integrated
Flush under the worktop
The CoolDrawer is made to fit flush, with gaps of just 4 mm. Finish it with a panel that matches your kitchen or with the stainless steel panel, so it blends in with the drawers around it.
Use it wherever you need extra cold storage, from the kitchen to an entertaining area.
The door panel and handle are not included. The stainless steel panel and handle kits are sold separately.
The details

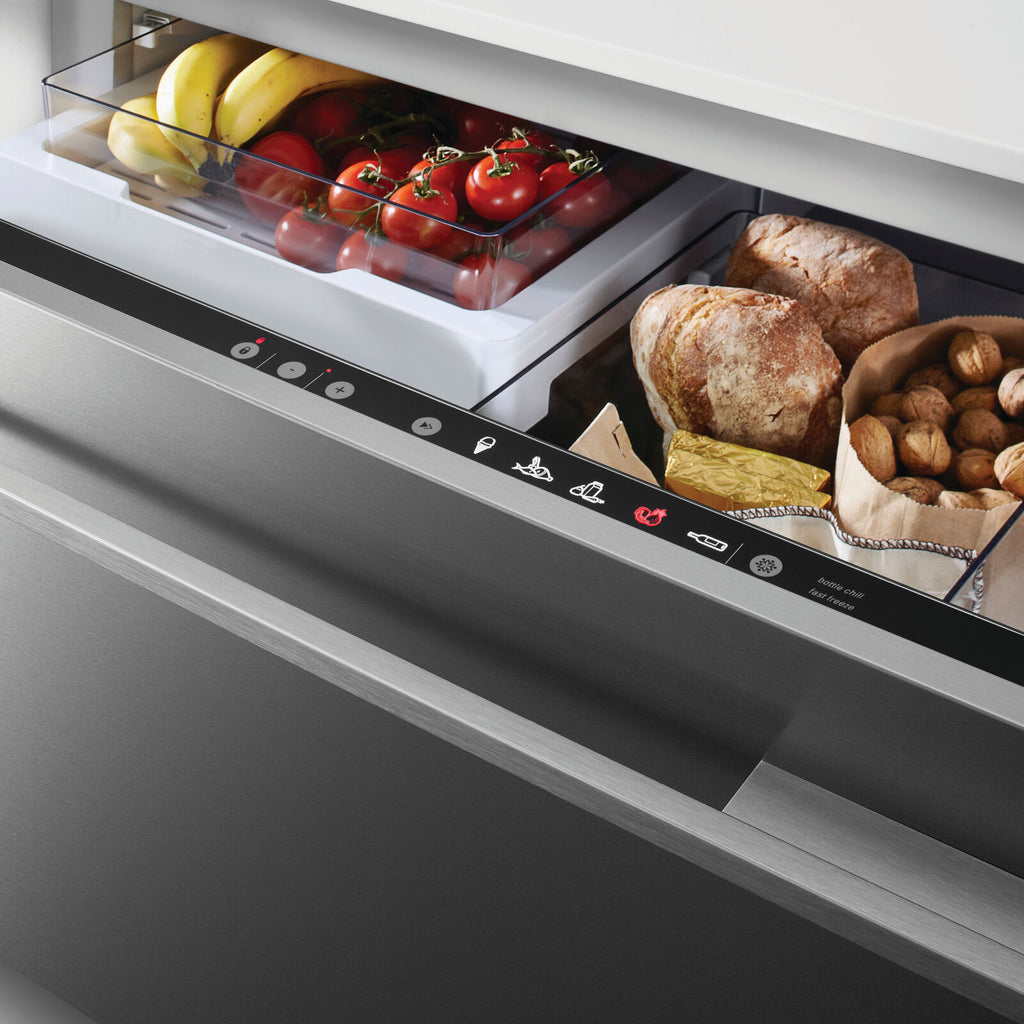

Touch controls
Change mode in seconds
The touch controls along the drawer let you choose the mode and adjust the temperature. There is also a key lock and a Sabbath mode.

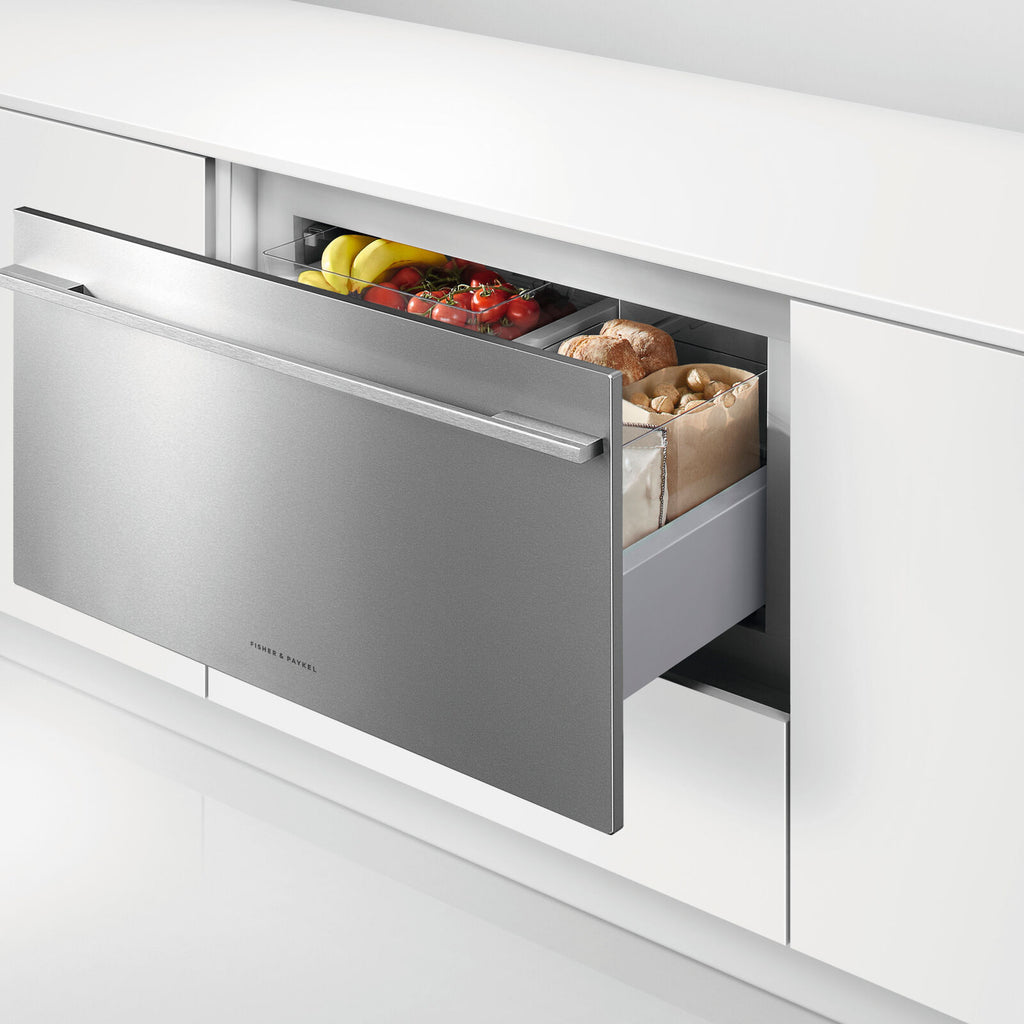

Full extension
Everything within reach
The drawer pulls all the way out on smooth runners, and LED lighting shows what's inside. An alarm sounds if it is left open.
Panel ready
Your fronts or steel
Fit a single custom panel, 16 to 20 mm thick, or Fisher & Paykel's stainless steel panel.
Questions and answers
Is it a fridge or a freezer?
Both, and more. You choose between freezer, chill, fridge, pantry and wine mode. When it is first switched on, it starts in freezer mode.
What niche does it need?
A niche at least 64.4 cm high, 86.4 cm wide and 56 cm deep under the worktop. Ventilation goes through the toe kick, so follow the planning and installation guides.
Is the panel included?
No. Fit your own custom panel or buy the stainless steel panel. Handles are sold separately too.
How much energy does it use?
It has two EU energy labels, both class E: 82 kWh a year in fridge mode and 197 kWh a year in freezer mode.
How quiet is it?
39 dB, noise class C.
Does it need a water connection?
No. It only needs a power connection.
The Fisher & Paykel Serie 9 RB9064S1 is a fully integrated 90 cm refrigerator designed for seamless kitchen integration. Its sleek design ensures it blends effortlessly with your cabinetry, providing a modern and minimalist aesthetic. The spacious interior offers ample storage for all your fresh produce and essentials.
